Aeroquip® FC736-10
Send Print
  1. pin-int

Aeroquip® FC736-10

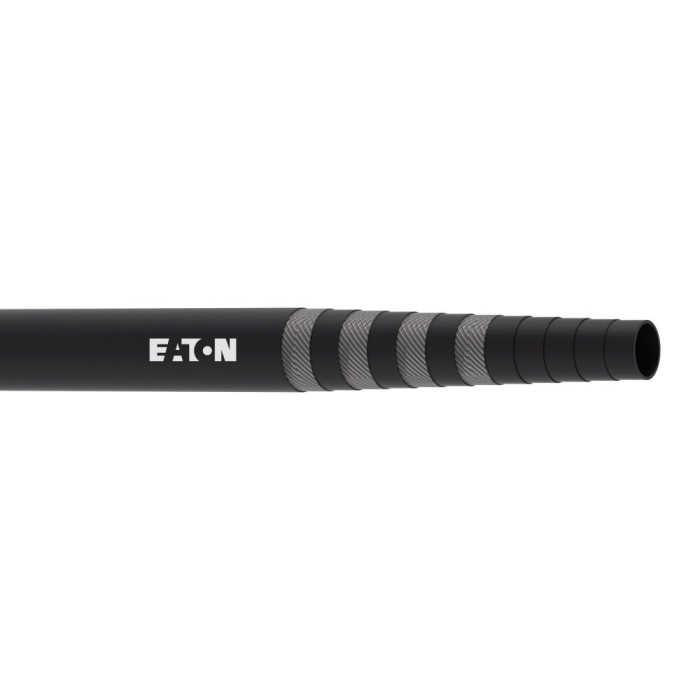

Aeroquip® FC736 Black Synthetic Rubber Hydraulic Spiral Hose, 1 ft L, 5000 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC736-10
  • MPN: FC736-10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Hydraulic Spiral Hose, FC736 Series, Dash Size: 10, 1.11 in OD, 0.62 in ID, 0.24 in Thick Wall, 1 ft Length, 5000 psi, Synthetic Rubber, Construction: 4-Spiral Wire, Black, 7.87 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 250 deg F High

Product Type      :      Hydraulic Spiral Hose
Series      :      FC736
Dash Size      :      10
Inside Diameter      :      0.62 in
Outside Diameter      :      1.11 in
Temperature Low      :      -40 deg F
Temperature High      :      250 deg F
Pressure Rating      :      5000 psi
Material      :      Synthetic Rubber
Construction      :      4-Spiral Wire
Wall Thickness      :      0.24 in
Color      :      Black
Length      :      1 ft
Bend Radius      :      7.87 in
Resistance Properties      :      Abrasion

Applications: For high abrasion industrial and hydraulic system applications with petroleum and water-based fluids recommended for use on critical applications in construction, forestry, and other off-highway vehicles
