Aeroquip® FC736-16
Send Print
  1. pin-int

Aeroquip® FC736-16

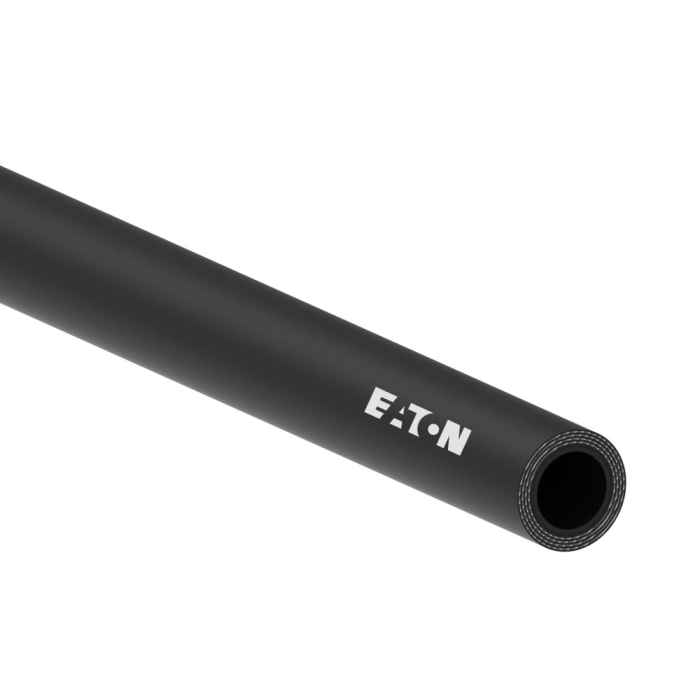

Aeroquip® FC736 Black Synthetic Rubber Hydraulic Spiral Hose, 1 in, 1 ft L, 4050 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC736-16
  • MPN: FC736-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Hydraulic Spiral Hose, FC736 Series, Nominal Size: 1 in, Dash Size: 16, 1.52 in OD, 1 in ID, 0.24 in Thick Wall, 1 ft Length, 4050 psi, Synthetic Rubber, Bruiser Cover, Construction: Spiral Wire, Black, 11.81 in Bend Radius, Resistance Properties: Premium Abrasion, -40 deg F Low, 250 deg F High

Product Type      :      Hydraulic Spiral Hose
Series      :      FC736
Nominal Size      :      1 in
Dash Size      :      16
Inside Diameter      :      1 in
Outside Diameter      :      1.52 in
Temperature Low      :      -40 deg F
Temperature High      :      250 deg F
Pressure Rating      :      4050 psi
Material      :      Synthetic Rubber
Cover Material      :      Bruiser
Construction      :      Spiral Wire
Wall Thickness      :      0.24 in
Color      :      Black
Length      :      1 ft
Bend Radius      :      11.81 in
Resistance Properties      :      Premium Abrasion

Applications: For high abrasion industrial and hydraulic system applications with petroleum and water-based fluids recommended for use on critical applications in construction, forestry, and other off-highway vehicles
