Aeroquip® FC273-16 AER FC273-16 | Tipco Technologies
Aeroquip® FC273-16
Send Print
  1. pin-int

Aeroquip® FC273-16

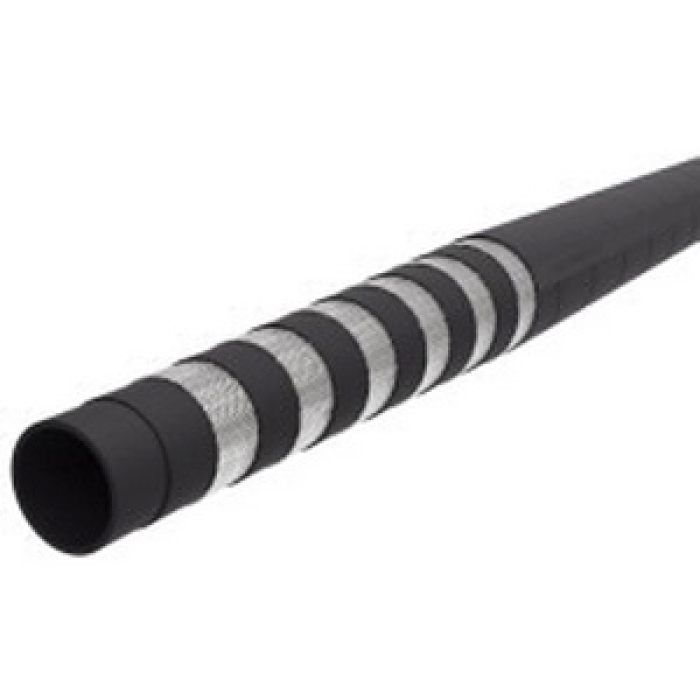

Aeroquip® FC273 Black Neoprene Hydraulic Spiral Hose, 1 in, 5000 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC273-16
  • MPN: FC273-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Hydraulic Spiral Hose, FC273 Series, Nominal Size: 1 in, Dash Size: 16, 1.52 in OD, 1 in ID, 5000 psi, SAE Rating: SAE 100R13 / EN856 R13, Neoprene, EPDM Cover, Construction: Synthetic Rubber Tube, Multiple Heavy Spiral Wire,, Black, 12 in Bend Radius, -40 deg F Low, 250 deg F High

Product Type      :      Hydraulic Spiral Hose
Series      :      FC273
Nominal Size      :      1 in
Dash Size      :      16
Inside Diameter      :      1 in
Outside Diameter      :      1.52 in
Temperature Low      :      -40 deg F
Temperature High      :      250 deg F
Pressure Rating      :      5000 psi
SAE Rating      :      SAE 100R13 / EN856 R13
Material      :      Neoprene
Cover Material      :      EPDM
Construction      :      Synthetic Rubber Tube, Multiple Heavy Spiral Wire,
Color      :      Black
Bend Radius      :      12 in

Applications: Hydraulic system service with petroleum and water-based fluids and general industrial use
