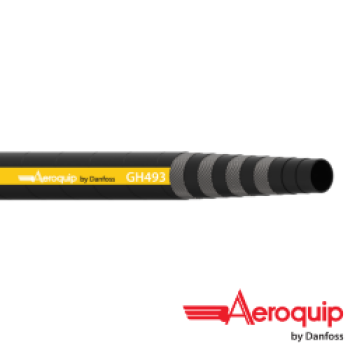

Aeroquip® MatchMate® Global Hydraulic Spiral Hose, GH493 Series, Nominal Size: 2 in, Dash Size: 32, 2.68 in OD, 2 in ID, 0.32 in Thick Wall, 1 ft Length, 4000 psi, SAE Rating: SAE 100R12 / EN 856 R12, Synthetic Rubber, DURA-TUFF™ Synthetic Rubber Cover, Construction: 4-Spiral Wire, Black, 25.2 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 260 deg F High
| Product Type | : | Hydraulic Spiral Hose |
| Series | : | GH493 |
| Nominal Size | : | 2 in |
| Dash Size | : | 32 |
| Inside Diameter | : | 2 in |
| Outside Diameter | : | 2.68 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 260 deg F |
| Pressure Rating | : | 4000 psi |
| SAE Rating | : | SAE 100R12 / EN 856 R12 |
| Material | : | Synthetic Rubber |
| Cover Material | : | DURA-TUFF™ Synthetic Rubber |
| Construction | : | 4-Spiral Wire |
| Wall Thickness | : | 0.32 in |
| Color | : | Black |
| Length | : | 1 ft |
| Bend Radius | : | 25.2 in |
| Resistance Properties | : | Abrasion |
Applications: Hydraulic system service with petroleum and water-based fluids, for general use
