Gates® 12EFG4K X25FT

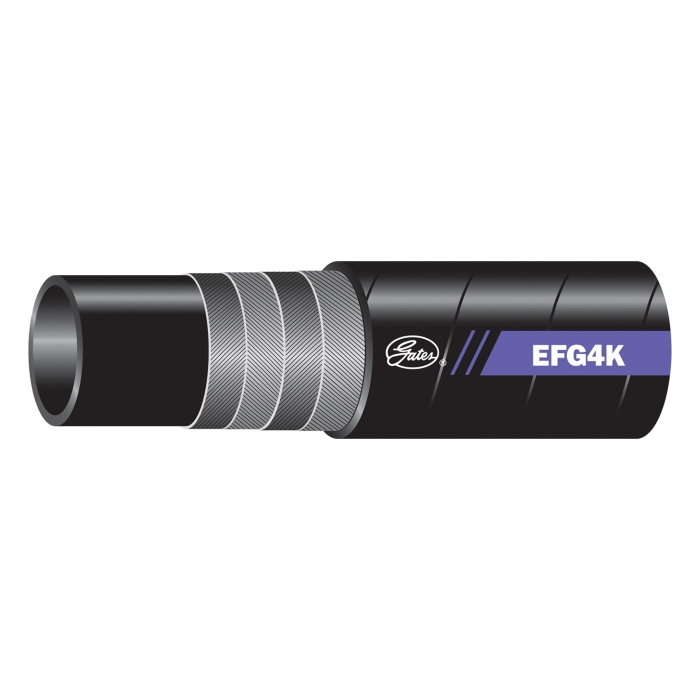

Gates® 12EFG4K X25FT Hydraulic Hose, 3/4 in, 3/4 in ID, 1.21 in OD, 25 ft L, 4000 psi, Synthetic Rubber, Black

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 12EFG4KX25FT
  • MPN: 12EFG4K X25FT
  • UPC: 072053505856
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for extremely high-pressure and high-impulse hydraulic applications. EFG4K exceeds requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 type R12. Recommended couplings - GlobalSpiral™ couplings (-6 through -20) special one-piece 20MGS coupling (MC4-20 Crimper Only) (-20), stainless steel S couplings.

Gates® Hydraulic Hose, 3/4 in Nominal, 3/4 in Inside Diameter, 1.21 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 250 deg F, 4000 psi, Synthetic Rubber, Synthetic Rubber Cover, 4-Spiral Steel Wire Construction, Black, 25 ft Length, 4.7 in Bend Radius, Resistance Properties: Flame, Oil, For Use With: GlobalSpiral™ Couplings

Product Type      :      Hydraulic Hose
Nominal Size      :      3/4 in
Inside Diameter      :      3/4 in
Outside Diameter      :      1.21 in
Temperature Low      :      -40 deg F
Temperature High      :      250 deg F
Pressure Rating      :      4000 psi
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      4-Spiral Steel Wire
Color      :      Black
Length      :      25 ft
Bend Radius      :      4.7 in
Resistance Properties      :      Flame, Oil
For Use With      :      GlobalSpiral™ Couplings
  • EFG4K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R12
  • Most flexible EN 856 R12/SAE 100R12 hose in the industry
  • 40% of EN 856 4SP bend radius at rated working pressure
  • EFG4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance - tested to 1000000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
  • Reinforcement - four-spiral, high-tensile steel wire
