Gates® 16EFG4K-XTFXCTN

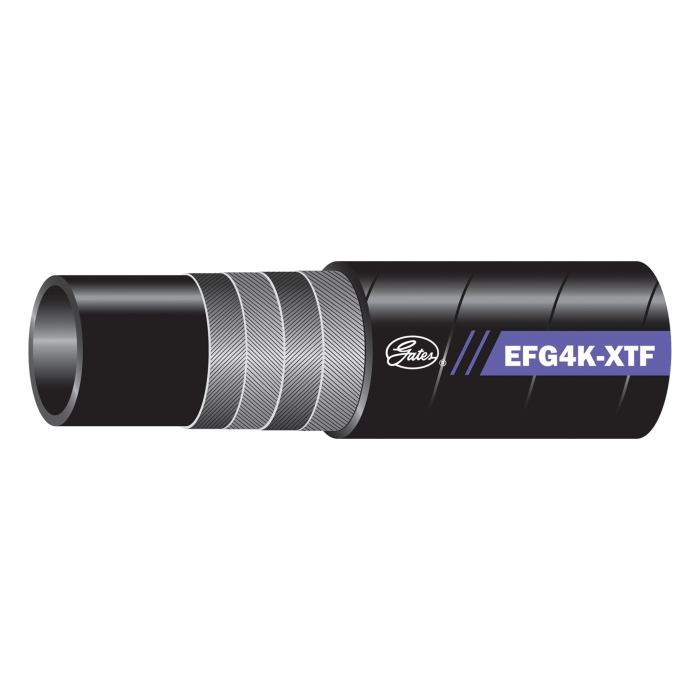

Gates® 16EFG4K-XTFXCTN Hydraulic Hose, 1 in, 1 in ID, 1-1/2 in OD, 100 ft L, 4000 psi, Synthetic Rubber, Black

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 16EFG4K-XTF
  • MPN: 16EFG4K-XTFXCTN
  • UPC: 770075689614
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Recommended for extremely high-pressure and high-impulse hydraulic applications. EFG4K-XTF exceeds requirements for ISO 18752 Grade D, SAE 100R12, EN 856 R12 and ISO 3862 type R12. Recommended couplings - GlobalSpiral™ couplings (-6 through -20) special one-piece 20MGS coupling (MC4-20 Crimper Only) (-20), stainless steel S couplings.

Gates® Hydraulic Hose, 1 in Nominal, 1 in Inside Diameter, 1-1/2 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 250 deg F, 4000 psi, Synthetic Rubber, Synthetic Rubber Cover, 4-Spiral Steel Wire Construction, Black, 100 ft Length, 6 in Bend Radius, Resistance Properties: Abrasion, Flame, Oil, For Use With: GlobalSpiral™ Couplings

Product Type      :      Hydraulic Hose
Nominal Size      :      1 in
Inside Diameter      :      1 in
Outside Diameter      :      1-1/2 in
Temperature Low      :      -40 deg F
Temperature High      :      250 deg F
Pressure Rating      :      4000 psi
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      4-Spiral Steel Wire
Color      :      Black
Length      :      100 ft
Bend Radius      :      6 in
Resistance Properties      :      Abrasion, Flame, Oil
For Use With      :      GlobalSpiral™ Couplings
  • With the Gates® special XtraTuff™ cover which offers 25 times the abrasion-resistance of the standard EFG4K cover as per ISO 6945
  • Most flexible EN 856 R12/SAE 100R12 hose in the industry
  • 40% of EN 856 4SP bend radius at rated working pressure
  • EFG4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance - tested to 1000000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
  • Reinforcement - four-spiral, high-tensile steel wire
