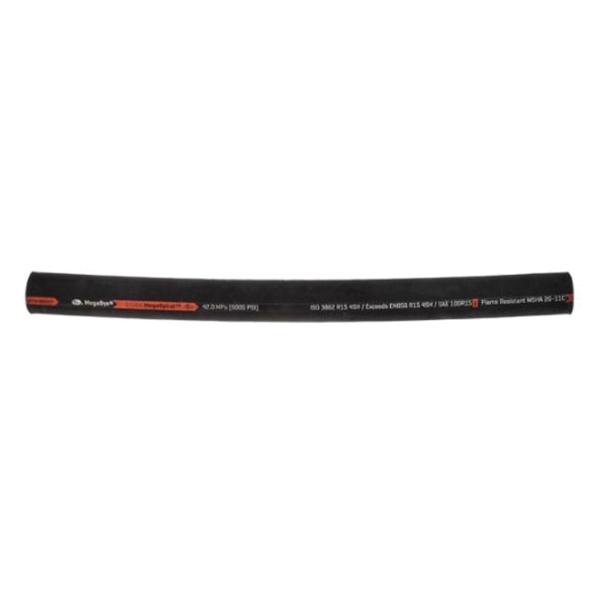

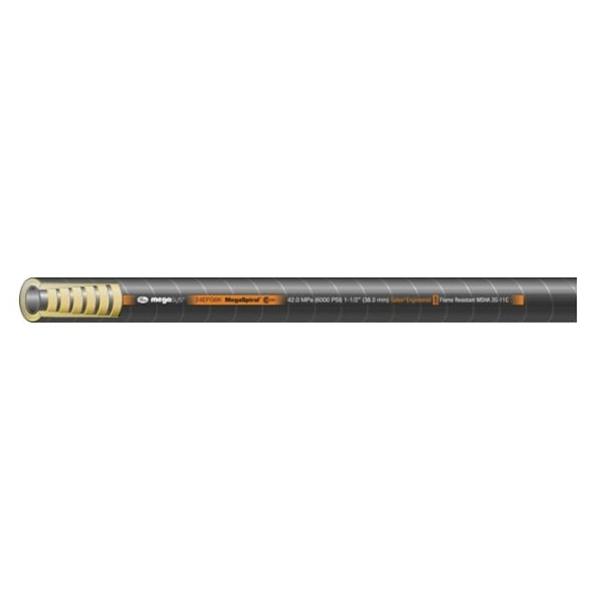

Gates® Hydraulic Spiral Hose, EFG6K Series, 1-1/4 in Nominal, 20 Dash, 1-1/4 in Inside Diameter, 1.97 in Outside Diameter, Temperature Low: -40 deg F, Temperature High: 250 deg F, 6000 psi, Polychloroprene Cover, Black, 8.2 in Bend Radius, Resistance Properties: Oil
| Product Type | : | Hydraulic Spiral Hose |
| Series | : | EFG6K Series |
| Nominal Size | : | 1-1/4 in |
| Dash Size | : | 20 |
| Inside Diameter | : | 1-1/4 in |
| Outside Diameter | : | 1.97 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 250 deg F |
| Pressure Rating | : | 6000 psi |
| Cover Material | : | Polychloroprene |
| Color | : | Black |
| Bend Radius | : | 8.2 in |
| Resistance Properties | : | Oil |
- EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii
- -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
- EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15
- Meets flame-resistant acceptance designation MSHA 2G
- 6000 psi constant pressure for all ID's
- Black, oil-resistant, synthetic rubber (polychloroprene - Type A) with color-coded lay line cover
