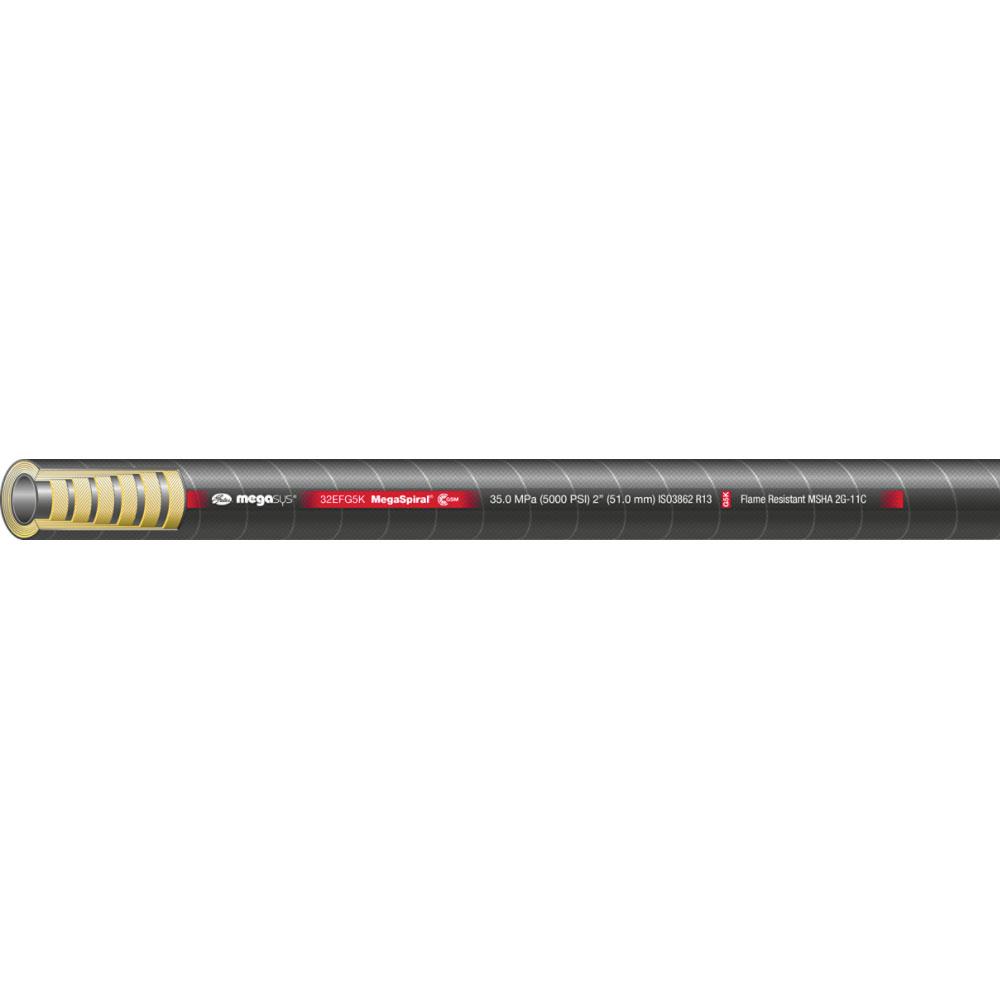

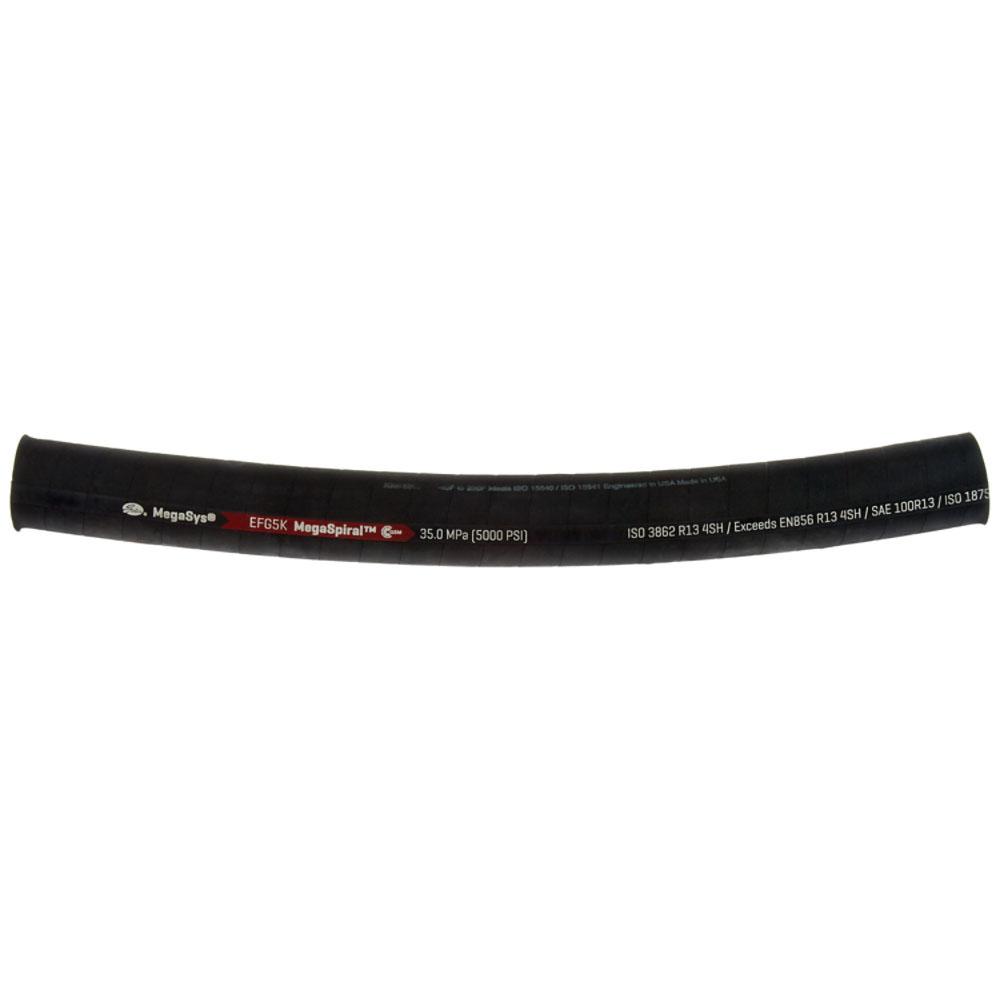

Recommended for extremely high-pressure and high-impulse hydraulic applications. EFG5K is designed to meet or exceed all requirements of ISO 3862 R13 specifications and performance requirements of EN 856 4SP (-10 to -32) and EN 856 4SH (-20 to -32). Recommended couplings -6 to -20: GlobalSpiral™, -24, -32: GlobalSpiral™ Maximum.
Gates® Spiral Wire Hose, Hose Type: Spiral Hose, 12 Dash Size, 3/4 in Inside Dia, 1.24 in Outside Dia, Nitrile Tube, Polychloroprene Cover, Four Alternating Layers of Spiraled High Tensile Steel Reinforcement, 4.7 in Bend Radius, 5000 psi, Flame Resistance Properties, 250 deg F Temperature High, -40 deg F Temperature Low, For Use With: GlobalSpiral™ Couplings (G20) Section E, GlobalSpiral™ MAX Pressure Couplings (-24) (G24), (-32) (G23) Section E and Stainless Steel Spiral Couplings (-6 through -20) (G18) Section F, Additional Information: 20000 psi Minimum Burst Pressure
| Dash Size | : | 12 |
| Inside Diameter | : | 3/4 in |
| Outside Diameter | : | 1.24 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 250 deg F |
| Pressure Rating | : | 5000 psi |
| Cover Material | : | Polychloroprene |
| Bend Radius | : | 4.7 in |
| Resistance Properties | : | Flame |
| For Use With | : | GlobalSpiral™ Couplings (G20) Section E, GlobalSpiral™ MAX Pressure Couplings (-24) (G24), (-32) (G23) Section E and Stainless Steel Spiral Couplings (-6 through -20) (G18) Section F |
- EFG5K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance, tested to 1,000,000 impulse cycles at 50% of EN 856 R13 and SAE 100R13 bend radii
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
- EFG5K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R13
- Meets flame-resistant acceptance designation MSHA 2G
