Gates® 70839 GAT 12EFG6K | Tipco Technologies
Gates® 70839
Send Print
  1. pin-int

Gates® 70839

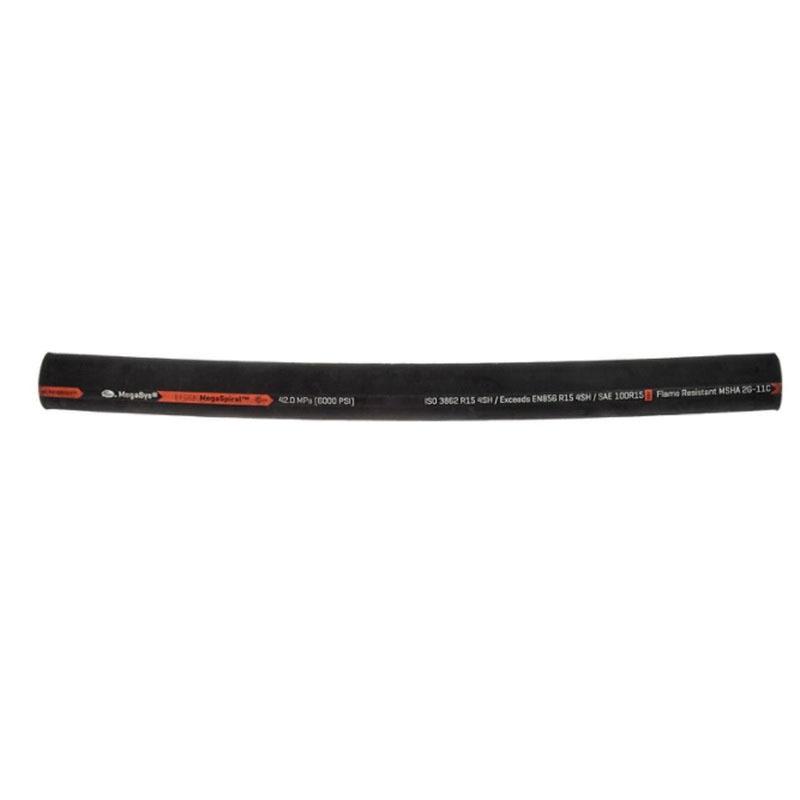

Gates® 70839 Spiral Wire Hose, 3/4 in Nominal, 6000 psi, Synthetic Rubber Tube, Black

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 12EFG6K
  • MPN: 70839
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Spiral Wire Hose, Hose Type: Spiral Hose, 3/4 in Nominal, 3/4 in Inside Dia, 1.24 in Outside Dia, Synthetic Rubber Tube, Synthetic Rubber Cover, 4-Spiral High Tensile Steel Wire Reinforcement, Black Hose Color, 4.7 in Bend Radius, 6000 psi, Oil Resistance Properties, 250 deg F Temperature High, -40 deg F Temperature Low, Additional Information: 24000 psi Burst Pressure

Nominal Size      :      3/4 in
Inside Diameter      :      3/4 in
Outside Diameter      :      1.24 in
Temperature Low      :      -40 deg F
Temperature High      :      250 deg F
Pressure Rating      :      6000 psi
Cover Material      :      Synthetic Rubber
Bend Radius      :      4.7 in
Resistance Properties      :      Oil
  • EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance, tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii
