Gates® 3RLA X25FT

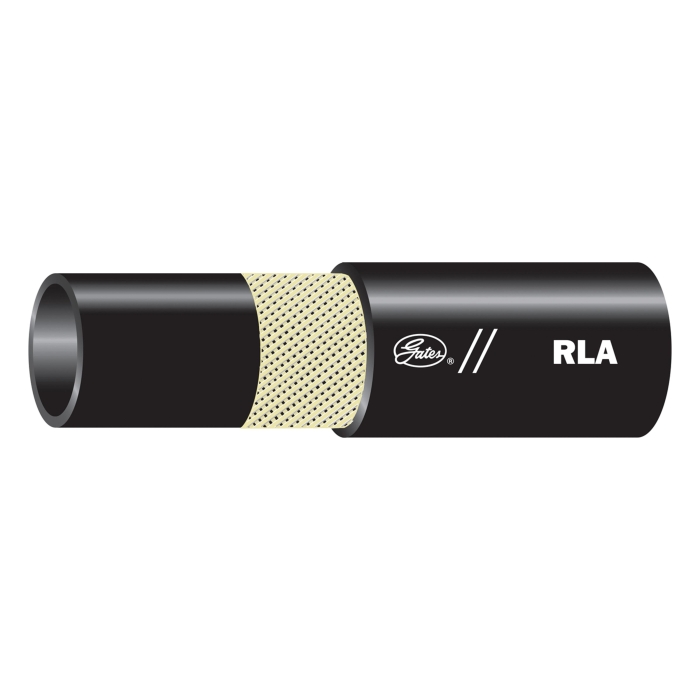

Gates® 3RLA X25FT Return Line and Low-Pressure Hydraulic Hose, 3/16 in, 3/16 in ID, 0.41 in OD, 25 ft L, 250 psi, Black
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 3RLA
- MPN: 3RLA X25FT
- UPC: 072053682410
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Recommended for low pressure hydraulic oil return lines for general-purpose water, glycol anti-freeze solutions, conveying diesel fuel, gasoline or air. Meets SAE 30R2 performance requirements of both type 1 and type 2 for fuel and B20 constant contact up to 125 deg F biodiesel fuel transfer applications.
Gates® Return Line and Low-Pressure Hydraulic Hose, 3/16 in Nominal, 0.41 in Outside Diameter, 3/16 in Inside Diameter, 25 ft Length, 250 psi, Synthetic Rubber, Synthetic Rubber Cover, 1-Fiber Braid Construction, Black, 3 in Bend Radius, Resistance Properties: Abrasion, Flame, Oil, Temperature Low: -40 deg F, Temperature High: 212 deg F, For Use With: MegaCrimp® Couplings
| Product Type | : | Return Line and Low-Pressure Hydraulic Hose |
| Nominal Size | : | 3/16 in |
| Outside Diameter | : | 0.41 in |
| Inside Diameter | : | 3/16 in |
| Length | : | 25 ft |
| Pressure Rating | : | 250 psi |
| Material | : | Synthetic Rubber |
| Cover Material | : | Synthetic Rubber |
| Construction | : | 1-Fiber Braid |
| Color | : | Black |
| Bend Radius | : | 3 in |
| Resistance Properties | : | Abrasion, Flame, Oil |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| For Use With | : | MegaCrimp® Couplings |
