One hose engineered for four-industrial applications - fuel, hydraulic return, coolant and water, Gates® Multi Master® GMV™ MegaFlex® delivers superior performance and ultimate flexibility. Recommended for suction and discharge applications where excellent flexibility is required and applications requiring maximum resistance to air, water, petroleum and lubricating oils.

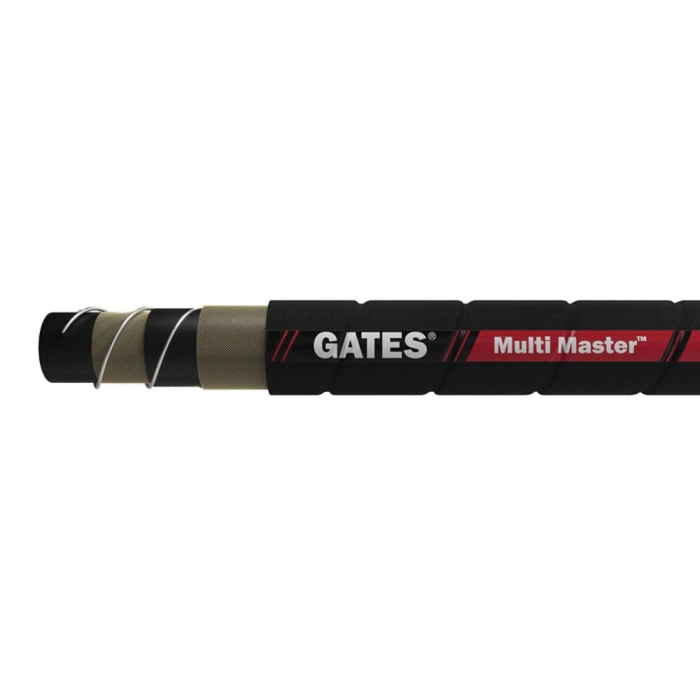

Gates® Return Line and Suction Hydraulic Hose, GMV Series, 40 Dash, 2.94 in Outside Diameter, 2-1/2 in Inside Diameter, 150 psi, Nitrile, Chloroprene Cover, Synthetic High Tensile Textile Cord with Steel Wire Helix Construction, Black, 2-1/2 in Bend Radius, Resistance Properties: Flame, Temperature Low: -40 deg F, Temperature High: 275 deg F, For Use With: GL G43 Series Couplings
| Product Type | : | Return Line and Suction Hydraulic Hose |
| Series | : | GMV Series |
| Dash Size | : | 40 |
| Outside Diameter | : | 2.94 in |
| Inside Diameter | : | 2-1/2 in |
| Pressure Rating | : | 150 psi |
| Material | : | Nitrile |
| Cover Material | : | Chloroprene |
| Construction | : | Synthetic High Tensile Textile Cord with Steel Wire Helix |
| Color | : | Black |
| Bend Radius | : | 2-1/2 in |
| Resistance Properties | : | Flame |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 275 deg F |
| For Use With | : | GL G43 Series Couplings |
- One multi-use hose that meets SAE 100R4, J30R5 and J20R5 (except tube dimensions)
- Higher temperature range and is rated at 1/5 the bend radius of SAE 100R4
- Uses a helical spiral wire to prevent hose collapse under suction
- Meets flame-resistance acceptance designation MSHA 2G
- Easy installation with 1:1 bend radius which saves time and is kink-free
- Industry-leading flexibility solves complex routings through tight spaces using less hose
- Lightweight and ergonomic for easy handling with lower risk of strain
- ARPM Class A tube provides maximum oil-resistance
Specification Sheet
