Recommended for petroleum-based hydraulic oils, water, glycol anti-freeze solutions, engine lubricating oils and air. Suitable for low pressure cleaning and pneumatic systems, return lines and low pressure lines. Lock-On hose and couplings are not recommended for pressure surge or critical applications such as permanent piping in residential or commercial buildings. Do not use for gasoline or diesel fuels, unless approved by Gates® H/C product application. Recommended couplings - field attachable LOL couplings (Except -3), GLP couplings (Except -3), GLX couplings (-4, -6, -8, -12), special order couplings may be needed (-3).

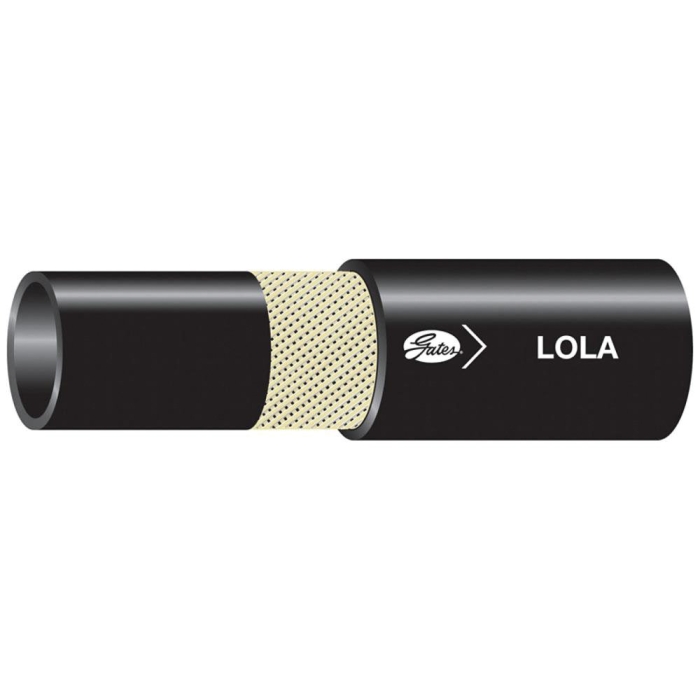

Gates® Multi-Purpose Hydraulic Hose, LOL Series, 0.41 in Outside Diameter, 3/16 in Inside Diameter, 300 psi, Nitrile, Nitrile Cover, 1-Fiber Braid Construction, Black, 3 in Bend Radius, Resistance Properties: Abrasion, Oil, Temperature Low: -40 deg F, Temperature High: 212 deg F, For Use With: G36 Series Field Attachable LOC GLX® G44 Series Couplings, Use Clamp Over G37 Single Bead and G38 Barbed with Clamp
| Product Type | : | Multi-Purpose Hydraulic Hose |
| Series | : | LOL Series |
| Outside Diameter | : | 0.41 in |
| Inside Diameter | : | 3/16 in |
| Pressure Rating | : | 300 psi |
| Material | : | Nitrile |
| Cover Material | : | Nitrile |
| Construction | : | 1-Fiber Braid |
| Color | : | Black |
| Bend Radius | : | 3 in |
| Resistance Properties | : | Abrasion, Oil |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| For Use With | : | G36 Series Field Attachable LOC GLX® G44 Series Couplings, Use Clamp Over G37 Single Bead and G38 Barbed with Clamp |
- Black cover only meets flame-resistance acceptance designation MSHA 2G
- Validated with lock-on plus reusable couplings
- Working pressure 2.1 MPa
