Gates® 32840150
Send Print
  1. pin-int

Gates® 32840150

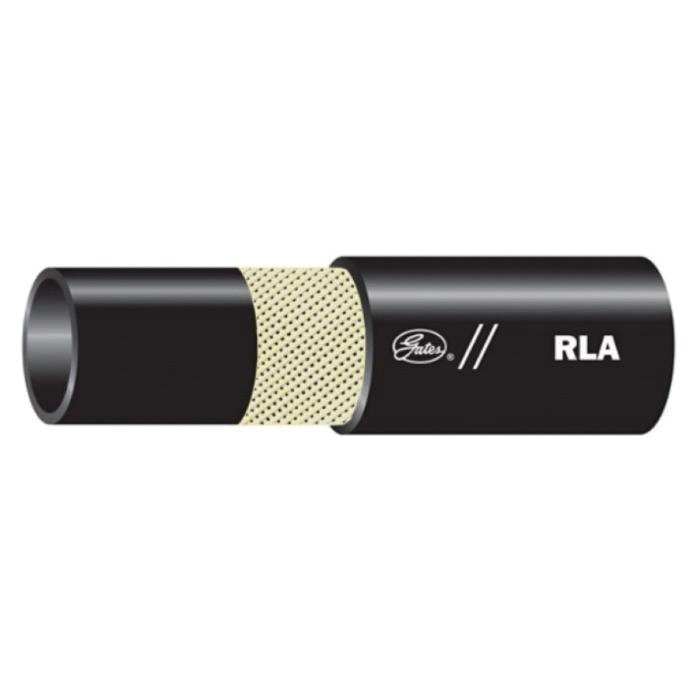

Gates® RLA Series 32840150 Return Line and Low-Pressure Hydraulic Hose, 1/2 in, 1/2 in ID, 0.66 in OD, 08, 200 psi

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 8RLA
  • MPN: 32840150
  • UPC: 072053225730
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Return Line and Low-Pressure Hydraulic Hose, RLA Series, 1/2 in Nominal, 08 Dash, 0.66 in Outside Diameter, 1/2 in Inside Diameter, 200 psi, Rubber, Nitrile Cover, 1-Fiber Braid Construction, Black, 5 in Bend Radius, Resistance Properties: Abrasion, Oil, Temperature Low: -40 deg F, Temperature High: 212 deg F

Product Type      :      Return Line and Low-Pressure Hydraulic Hose
Series      :      RLA Series
Nominal Size      :      1/2 in
Dash Size      :      08
Outside Diameter      :      0.66 in
Inside Diameter      :      1/2 in
Pressure Rating      :      200 psi
Material      :      Rubber
Cover Material      :      Nitrile
Construction      :      1-Fiber Braid
Color      :      Black
Bend Radius      :      5 in
Resistance Properties      :      Abrasion, Oil
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
  • Validated with MegaCrimp®
  • Black, synthetic rubber, oil and abrasion-resistant (modified nitrile - Type C2) cover
  • 4:1 design factor
