Aeroquip® 3130-06-500R
Send Print
  1. pin-int

Aeroquip® 3130-06-500R

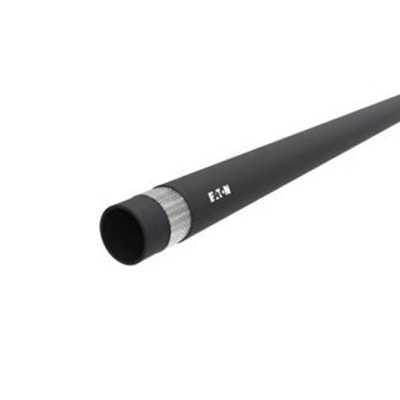

Aeroquip® 3130 Black Nylon/Urethane Medium-Pressure Hose, 500 ft L, 2250 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 3130-06-500R
  • MPN: 3130-06-500R
  • Min. Order Qty: 500
  • Qty. Interval: 500
  • Register to see Availability

Aeroquip® Medium-Pressure Hose, 3130 Series, Dash Size: 06, 0.67 in OD, 0.38 in ID, 500 ft Length, 2250 psi, SAE Rating: SAE 100R7, Nylon/Urethane, Perforated Polyurethane Cover, Construction: Spiral or Braided Synthetic Fiber, Black, 2 in Bend Radius, -40 deg F Low, 212 deg F High

Product Type      :      Medium-Pressure Hose
SAE Rating      :      SAE 100R7
Material      :      Nylon/Urethane
Cover Material      :      Perforated Polyurethane
Construction      :      Spiral or Braided Synthetic Fiber
Color      :      Black
Length      :      500 ft
Series      :      3130
Bend Radius      :      2 in
Dash Size      :      06
Inside Diameter      :      0.38 in
Outside Diameter      :      0.67 in
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
Pressure Rating      :      2250 psi
  • Low elongation
  • Coextruded tube, urethane and nylon
  • Low volumetric expansion - less than +/-2%

Applications: Chemical transfer, forklifts, general hydraulics, marine steering, material handling
