High-pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.

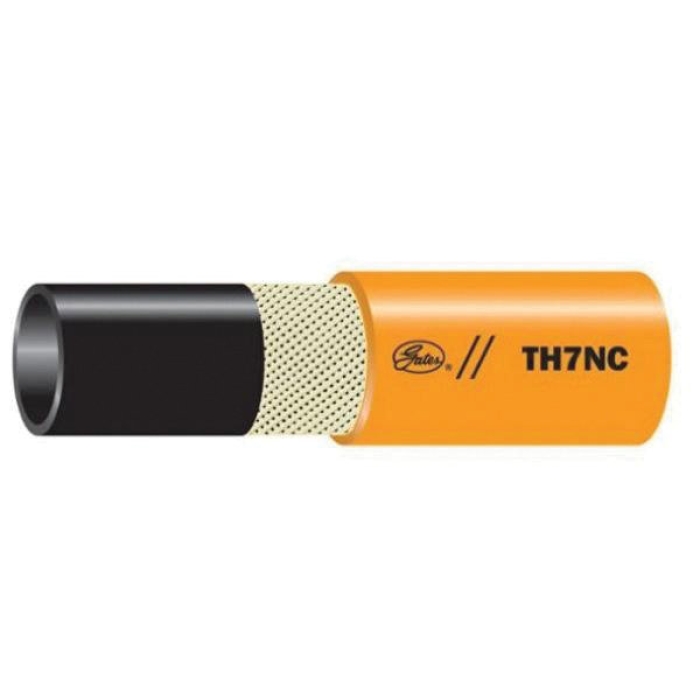

Gates® Non-Conductive Hydraulic Hose, Nylon, Urethane Cover, Braid Synthetic Fiber Construction, Orange, TH7NC Series, 10 in Bend Radius, Resistance Properties: Aging, High Temperature, Weather, 1 in Nominal, 16 Dash, 1 in Inside Diameter, 1.32 in Outside Diameter, Temperature Low: -65 deg F, Temperature High: 200 deg F, 1000 psi
| Product Type | : | Non-Conductive Hydraulic Hose |
| Material | : | Nylon |
| Cover Material | : | Urethane |
| Construction | : | Braid Synthetic Fiber |
| Color | : | Orange |
| Series | : | TH7NC Series |
| Bend Radius | : | 10 in |
| Resistance Properties | : | Aging, High Temperature, Weather |
| Nominal Size | : | 1 in |
| Dash Size | : | 16 |
| Inside Diameter | : | 1 in |
| Outside Diameter | : | 1.32 in |
| Temperature Low | : | -65 deg F |
| Temperature High | : | 200 deg F |
| Pressure Rating | : | 1000 psi |
- Validated with MegaCrimp®
- Orange urethane cover that resists hydraulic fluids, high-temperatures, aging and weathering
- Orange TH7NC cover is non-perforated for applications requiring electrical non-conductivity
- Maximum leakage shall not exceed 50 uA when subjected to 75 kV/ft for 5 min
- Orange is industry accepted color for non-conductive hose
- Orange color TH7NC meets SAE 100R7 non-conductivity requirements
- Meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius
- Meets ANSI A92.2 for vehicle-mounted aerial devices
- 100% seamless nylon, type Z that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol
