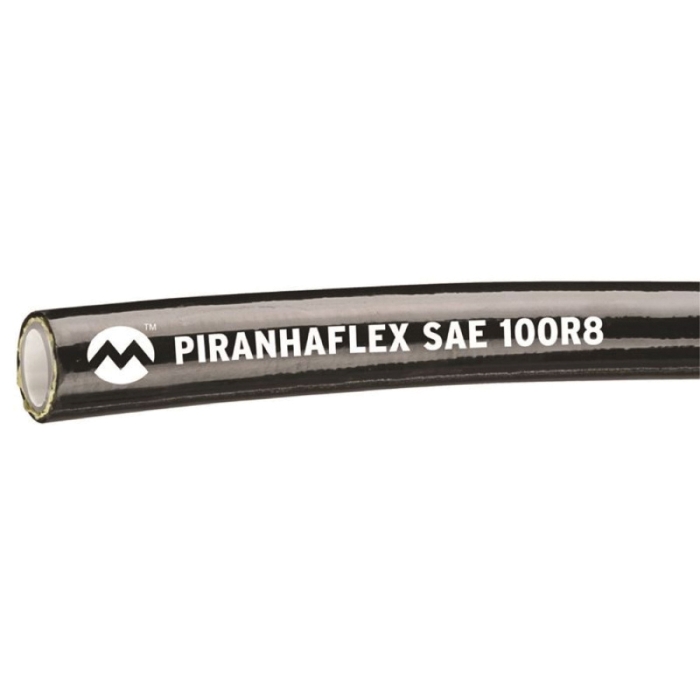

Kuriyama Piranhaflex™ High-Pressure Hydraulic Hose, Series: PF528, Nominal Size: 3/4 in, Dash Size: 12, 3/4 in ID, 1.22 in OD, -40 deg F Low, 200 deg F Petroleum-Based, 140 deg F Water-Based High, 2250 psi, SAE Rating: SAE 100R8, Nylon, Polyurethane Cover, Construction: Braided High-Tensile Strength Fiber, 250 ft Length, Black, 4-1/2 in Bend Radius, Resistance Properties: Abrasion, Kink
| Product Type | : | Hydraulic Hose |
| SAE Rating | : | SAE 100R8 |
| Material | : | Nylon |
| Cover Material | : | Polyurethane |
| Construction | : | Braided High-Tensile Strength Fiber |
| Color | : | Black |
| Length | : | 250 ft |
| Series | : | PF528 |
| Bend Radius | : | 4-1/2 in |
| Resistance Properties | : | Abrasion, Kink |
| Nominal Size | : | 3/4 in |
| Dash Size | : | 12 |
| Inside Diameter | : | 3/4 in |
| Outside Diameter | : | 1.22 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 200 deg F Petroleum-Based, 140 deg F Water-Based |
| Pressure Rating | : | 2250 psi |
- Lightweight, less than about half that of comparable rubber/wire hose
- Improved flexural rigidity, up to 17% less force to bend vs competitive 100R8 type hoses
- Meets or exceeds SAE 100R8 impulse requirements at half of SAE recommended bend radius standards
- Improved kink resistance, up to 50% more force required to reach kink initiation vs competitive 100R8 type hose styles
- Will not swell or degrade in contact with most hydraulic fluids or oils
- Highly abrasion-resistant
- Inner tube will not chip or peel in service, eliminating the possibility of system contamination
Standards/Certifications: SAE 100R8 Certified
Applications: For general-purpose high-pressure hydraulic applications with a constant working pressure of 3000 psi for each diameter, used in industrial hydraulic construction, material handling and agricultural equipment
Catalog/Catalog Cut Sheet
