Synflex® by Danfoss 3R30-03003

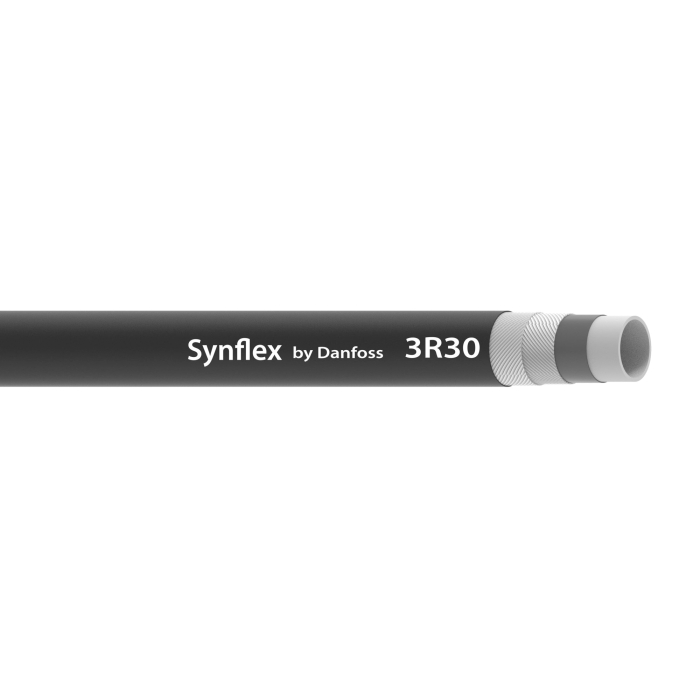

Synflex® by Danfoss 3R30 Series 3R30-03003 Low Pressure Hose, 3/16 in, 3/16 in ID, 0.38 in OD, 3, 250 ft L, 1750 psi

  • Manufacturers: Danfoss
  • Brand Name: Synflex® by Danfoss
  • Tipco Part No: SYN 3R30-03003
  • MPN: 3R30-03003
  • UPC: 639789345462
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Synflex® by Danfoss Low Pressure Hose, Nylon, Polyethylene Cover, Black, 250 Length, 3R30 Series, 1 Bend Radius, 3/16 Nominal, 3 Dash, 3/16 Inside Diameter, 0.38 Outside Diameter, -40 Temperature Low, 212 Temperature High, 1750

Material      :      Nylon
Cover Material      :      Polyethylene
Color      :      Black
Length      :      250 ft
Series      :      3R30 Series
Bend Radius      :      1 in
Nominal Size      :      3/16 in
Dash Size      :      3
Inside Diameter      :      3/16 in
Outside Diameter      :      0.38 in
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
Pressure Rating      :      1750 psi
  • Low volumetric expansion
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_by_Danfoss_3R30_03003_Catalog.pdf
