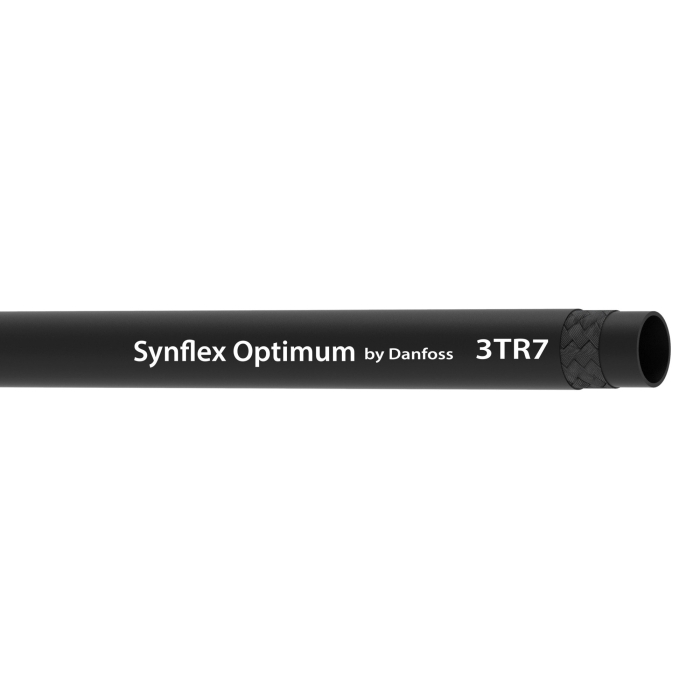

Synflex® by Danfoss 3TR7-05-250BX
Synflex® by Danfoss 3TR7 Series 3TR7-05-250BX Hydraulic Hose, 0.31 in, 0.31 in ID, 0.57 in OD, 05, 250 ft L, 2550 psi
- Manufacturers: Danfoss
- Brand Name: Synflex® by Danfoss
- Tipco Part No: ALT 3TR7-05
- MPN: 3TR7-05-250BX
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Eaton Synflex® optimum thermoplastic hydraulic hoses and fittings empower OEM's to reimagine design. Our system engineered portfolio offers streamlined product configurations that make it easy to find the perfect combination for every application. And our commitment to innovation includes the design and technical support needed to develop more efficient, safe and productive systems.
Synflex® by Danfoss Hydraulic Hose, Nylon, Polyurethane Cover, 1-Ply Braided Construction, Black, 250 Length, 3TR7 Series, 1-1/2 Bend Radius, Resistance Properties: Abrasion, Chemical, Ozone, UV, 0.31 Nominal, 05 Dash, 0.31 Inside Diameter, 0.57 Outside Diameter, -40 Temperature Low, 212 Temperature High, 2550
| Material | : | Nylon |
| Cover Material | : | Polyurethane |
| Construction | : | 1-Ply Braided |
| Color | : | Black |
| Length | : | 250 ft |
| Series | : | 3TR7 Series |
| Bend Radius | : | 1-1/2 in |
| Resistance Properties | : | Abrasion, Chemical, Ozone, UV |
| Nominal Size | : | 0.31 in |
| Dash Size | : | 05 |
| Inside Diameter | : | 0.31 in |
| Outside Diameter | : | 0.57 in |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| Pressure Rating | : | 2550 psi |
- The thermoplastic polyurethane and polyester outer cover resists ozone, ultraviolent light and aging
- Eaton Synflex® Optimum 100R7 and 100R8 hose covers were formulated to require 50% less routing force reducing the chance of kinking
- Ability to mold into configurations that match system design
- The new TPU and polyester cover increases abrasion-resistant by 10%
- Lift and handle heavy loads with hose power
- Thermoplastic composition paired with nylon lining prevents absorption of most oils and hydraulic fluids
- Lightweight hose design drives performance efficiencies, reducing vehicle power requirements
- Synthetic reinforced thermoplastic hoses are about 2x lighter then equivalent wire braided rubber hose
- Synflex® thermoplastic hoses can be permanently joined without the use of any mechanical devices
- Thermoplastic hose will not degrade or create contaminants in filters and valves to help you maintain a clean system
- Special reinforcements on the thermoplastic hoses help reduce machine noise
