Aeroquip® H034964-100 DANFOSS WILDCAT 4IN | Tipco Technologies
Aeroquip® H034964-100
Send Print
  1. pin-int

Aeroquip® H034964-100

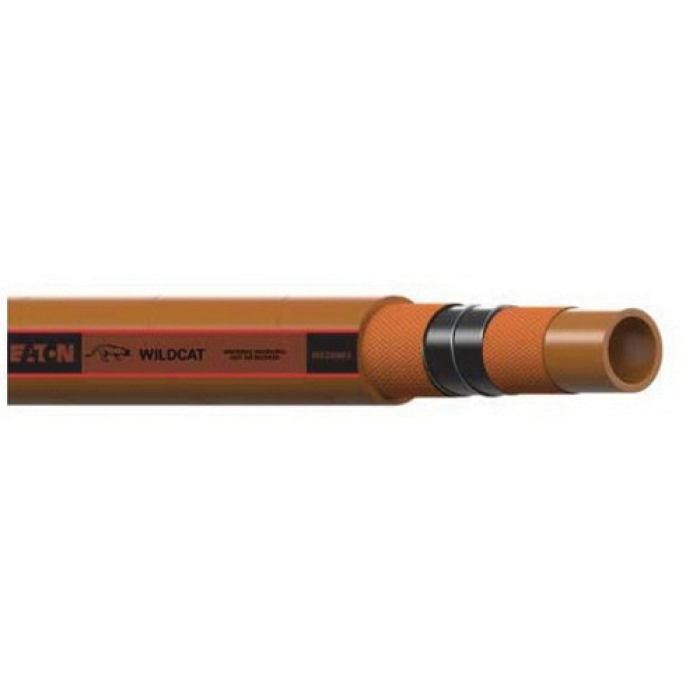

Aeroquip® Boston H0349 Brown EPDM Hot Air Hose, 4 in, 100 ft L, 100 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: DANFOSS WILDCAT 4IN
  • MPN: H034964-100
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Boston® Hot Air Hose, H0349 Series, Nominal Size: 4 in, 4.59 in OD, 4 in ID, 100 ft Length, 100 psi, EPDM, EPDM Cover, Construction: Textile with Dual Helical Wire, Brown, 11 in Bend Radius, Resistance Properties: Abrasion, Heat, Weather, -45 deg F Low, 300 deg F High

Product Type      :      Air Hose
Series      :      H0349
Nominal Size      :      4 in
Outside Diameter      :      4.59 in
Inside Diameter      :      4 in
Length      :      100 ft
Pressure Rating      :      100 psi
Material      :      EPDM
Cover Material      :      EPDM
Construction      :      Textile with Dual Helical Wire
Color      :      Brown
Bend Radius      :      11 in
Resistance Properties      :      Abrasion, Heat, Weather
Temperature Low      :      -45 deg F
Temperature High      :      300 deg F
  • 4:1 safety factor
  • Continuous printed brand
  • Longer length
  • Pin-pricked

Applications: Hot air blower hose, dry, non-oily air applications
