Gates® 32020027
Gates® 32020027 Air and Multi-Purpose Lock-On Hose, 1-1/4 in ID, 1.78 in OD, 20, 300 ft L, 501 psi, Nitrile, Yellow
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 11/4-501T
- MPN: 32020027
- UPC: 072053644456
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability

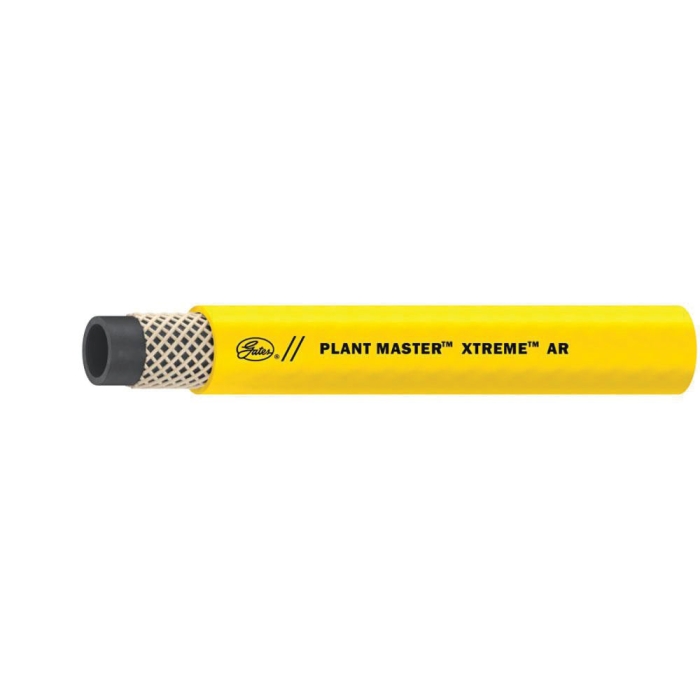

The Plant Master™ XTreme™ 300 lock-on braid hose is recommended for petroleum-based hydraulic oils, water, glycol anti-freeze solutions, hot lubricating oils and air. Caution: hose and couplings are not recommended for pressure surge applications or critical applications, such as permanent piping in residential or commercial buildings. Not recommended for gasoline or diesel fuels.
Gates® Air and Multi-Purpose Lock-On Hose, 20 Dash, 1.78 in Outside Diameter, 1-1/4 in Inside Diameter, 300 ft Length, 501 psi, Nitrile, Carboxylate Nitrile Cover, Synthetic High Tensile Textile Cord Construction, Yellow, 10 in Bend Radius, Resistance Properties: Flame, Oil, Ozone, Weather, Temperature Low: -40 deg F, Temperature High: 212 deg F, For Use With: Power Crimp®, GLX® G44 Series Couplings and MegaCrimp® G25 Series Couplings
| Product Type | : | Air and Multi-Purpose Lock-On Hose |
| Dash Size | : | 20 |
| Outside Diameter | : | 1.78 in |
| Inside Diameter | : | 1-1/4 in |
| Length | : | 300 ft |
| Pressure Rating | : | 501 psi |
| Material | : | Nitrile |
| Cover Material | : | Carboxylate Nitrile |
| Construction | : | Synthetic High Tensile Textile Cord |
| Color | : | Yellow |
| Bend Radius | : | 10 in |
| Resistance Properties | : | Flame, Oil, Ozone, Weather |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
| For Use With | : | Power Crimp®, GLX® G44 Series Couplings and MegaCrimp® G25 Series Couplings |
- R > 10^6 Ohm, storage may adversely affect electrical resistance
- ARPM Class A high oil-resistant tube
- ARPM Class B medium oil-resistant cover
- High oil-resistant tube
