Kuriyama A4164-04X500
Send Print
  1. pin-int

Kuriyama A4164-04X500

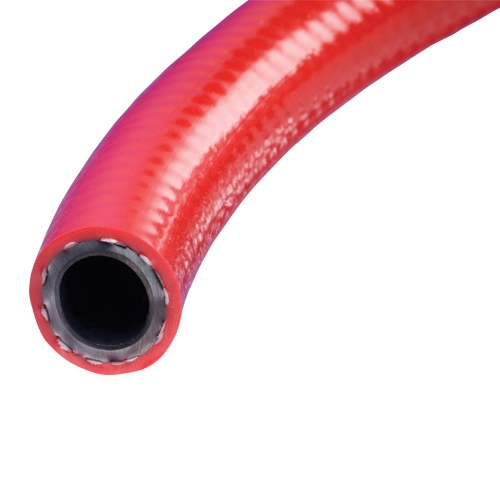

Kuriyama Kuri Tec® A4164 Red PVC Conductive Air Hose, 1/4 in, 500 ft L, 300 psi

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • Tipco Part No: KUR A4164-04X500
  • MPN: A4164-04X500
  • Min. Order Qty: 500
  • Qty. Interval: 500
  • Register to see Availability

Kuriyama Kuri Tec® Conductive Air Hose, A4164 Series, Nominal Size: 1/4 in, 0.50 in OD, 0.25 in ID, 500 ft Length, 300 psi, PVC, PVC Cover, Construction: Spiral Polyester Yarn, Red, Resistance Properties: Weather, 14 deg F Low, 150 deg F High

Product Type      :      Air Hose
Series      :      A4164
Nominal Size      :      1/4 in
Outside Diameter      :      0.50 in
Inside Diameter      :      0.25 in
Length      :      500 ft
Pressure Rating      :      300 psi
Material      :      PVC
Cover Material      :      PVC
Construction      :      Spiral Polyester Yarn
Color      :      Red
Resistance Properties      :      Weather
Temperature Low      :      14 deg F
Temperature High      :      150 deg F
  • Uniquely different PVC air hose that prevents static build-up without the need of a static wire
  • Continuous flexible conductive liner assures contact with fittings, without special preparation or clamping techniques
  • No wires to break when the hose is flexed
  • Distinctive color and branding allows easy identification
  • Silicone-free
  • 1-piece length
  • Branded as conductive air
  • Non-marking non-perforated cover
  • Co-extruded electrically-conductive PVC tube
  • Red weather-resistant PVC cover
  • Resistance is less than 100000 Ohm/ft when tested with an ohmmeter, with normal open circuit output voltage of 500 VDC

Applications: Air lines for painting equipment
