Kuriyama T720LG500X20

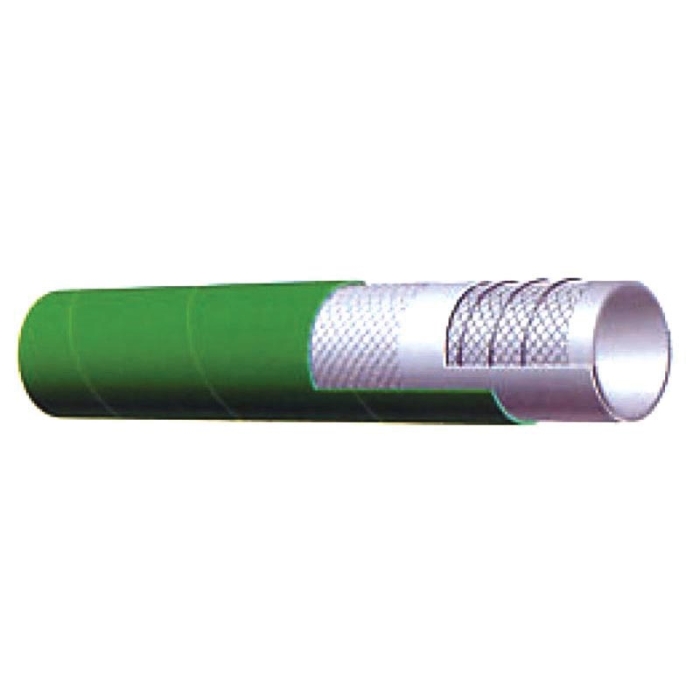

Kuriyama Alfagomma® T720LG Green/White Natural Rubber Food-Grade Suction and Discharge Hose, 5 in, 20 ft L, 75 psi

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • Tipco Part No: KUR T720LG500X20
  • MPN: T720LG500X20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Kuriyama Alfagomma® Food-Grade Suction and Discharge Hose, Series: T720LG, Nominal Size: 5 in, 5.71 in OD, 5 in ID, 20 ft Length, 75 psi, Natural Rubber, SBR/EPDM Blend Cover, Construction: Spiraled High-Tensile Textile Cords with Flexible Steel Helix Wire and Static Wire, Green/White, 20 in Bend Radius, Resistance Properties: Abrasion, Ozone, -22 deg F Low, 176 deg F High

Product Type      :      Suction and Discharge Hose
Pressure Rating      :      75 psi
Material      :      Natural Rubber
Cover Material      :      SBR/EPDM Blend
Construction      :      Spiraled High-Tensile Textile Cords with Flexible Steel Helix Wire and Static Wire
Color      :      Green/White
Bend Radius      :      20 in
Resistance Properties      :      Abrasion, Ozone
Temperature Low      :      -22 deg F
Series      :      T720LG
Temperature High      :      176 deg F
Nominal Size      :      5 in
Outside Diameter      :      5.71 in
Inside Diameter      :      5 in
Length      :      20 ft

Standards/Certifications: FDA Approved

  • RoHS Compliant

    Applications: For suction and discharge of wet or dry abrasive materials, grains, flour and pellet transfer
