Kuriyama K3150-16X300 NEW 100-1154-300 | Tipco Technologies
Kuriyama K3150-16X300
Send Print
  1. pin-int

Kuriyama K3150-16X300

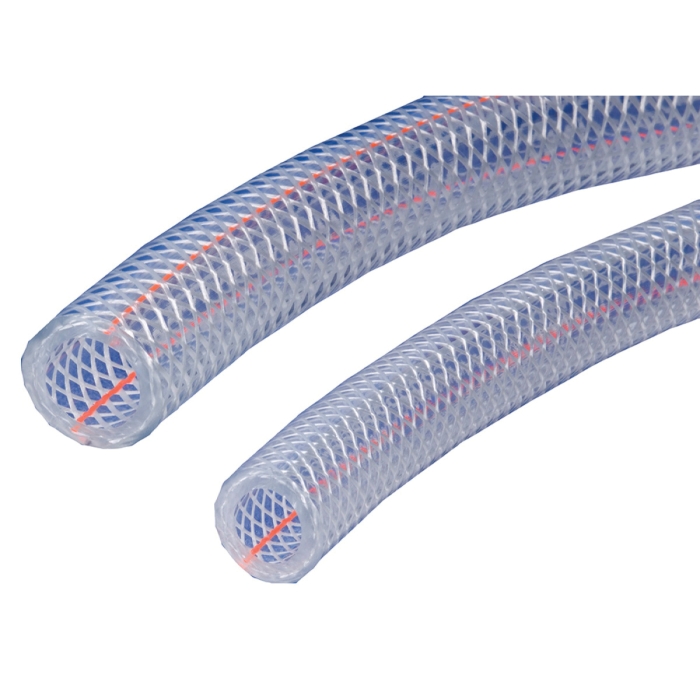

Kuriyama Kuri Tec® CLEARBRAID® K3150 Crystal Clear PVC Standard Wall Food and Beverage Hose, 1 in, 300 ft L, 125 psi at 70 deg F, 75 psi at 122 deg F

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • Tipco Part No: NEW 100-1154-300
  • MPN: K3150-16X300
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Kuriyama Kuri Tec® Standard Wall Food and Beverage Hose, Series: CLEARBRAID® K3150, Nominal Size: 1 in, Dash Size: 16, 1.3 in OD, 1 in ID, 300 ft Length, 125 psi, PVC, Construction: Spiraled Polyester Yarn and Longitudinal Orange Tracer Yarns, Crystal Clear, Resistance Properties: Chemical, 25 deg F Low, 150 deg F High

Product Type      :      Food and Beverage Hose
Pressure Rating      :      125 psi
Material      :      PVC
Construction      :      Spiraled Polyester Yarn and Longitudinal Orange Tracer Yarns
Color      :      Crystal Clear
Resistance Properties      :      Chemical
Temperature Low      :      25 deg F
Series      :      CLEARBRAID® K3150
Temperature High      :      150 deg F
Nominal Size      :      1 in
Dash Size      :      16
Outside Diameter      :      1.3 in
Inside Diameter      :      1 in
Length      :      300 ft

A lightweight standard wall crystal clear phthalate-free yarn reinforced hose suitable for a wide variety of food and beverage applications.

  • Crystal clear phthalate-free PVC compound construction
  • Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification
  • Constructed with phthalate-free compounds
  • Crystal clear allows visual confirmation of product flow
  • Longitudinally-reinforced to reduce elongation under pressure
  • Lightweight, self-extinguishing, non-marking, silicone-free and non-conductive
  • 1-piece length
  • Compound hardness 73 +/-3 shore A

Standards/Certifications: 3A Approved

  • FDA Approved
  • NSF Certified
  • RoHS Compliant
  • UL Listed
  • USDA Compliant
  • USP Certified

    Applications: Air and water lines, air breathing lines, deionized water, food and beverage dispensing, liquid food products, packaging machines, potable water transfer, powdered food products and pneumatic lines

    • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_K3150-16X300_SS.pdf
