Kuriyama K7300-16X100

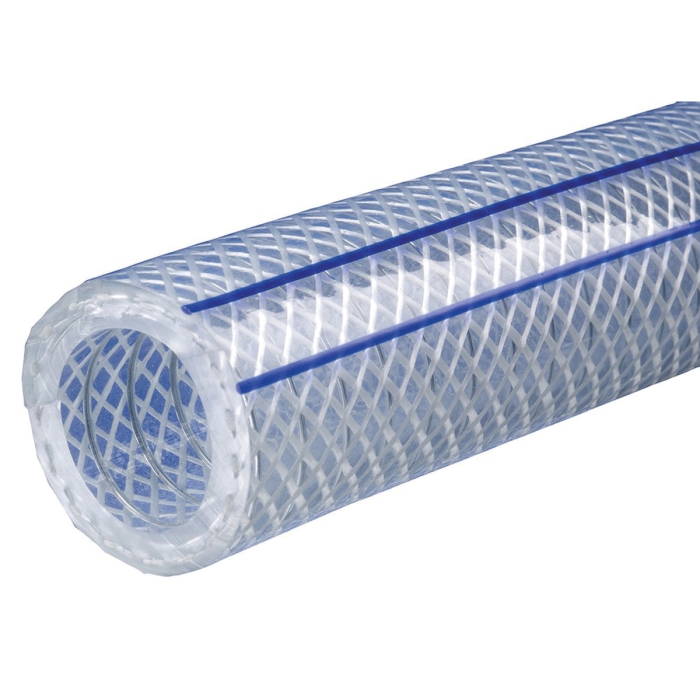

Kuriyama Kuri Tec® POLYWIRE® PLUS K7300 Crystal Clear PVC Heavy Wall Vacuum/Pressure Hose, 1 in, 100 ft L, 225 psi

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • Tipco Part No: KUR K7300-16X100
  • MPN: K7300-16X100
  • Min. Order Qty: 100
  • Qty. Interval: 100
  • Register to see Availability

Kuriyama Kuri Tec® Heavy Wall Vacuum/Pressure Hose, POLYWIRE® PLUS K7300 Series, Nominal Size: 1 in, 1.464 in OD, 1 in ID, 100 ft Length, 225 psi, PVC, Construction: High-Tensile Yarns and Helically-Wound Spring Steel Wire, Crystal Clear, 3-1/2 in Bend Radius, Resistance Properties: Chemical, 15 deg F Low, 150 deg F High

Product Type      :      Vacuum/Pressure Hose
Pressure Rating      :      225 psi
Material      :      PVC
Construction      :      High-Tensile Yarns and Helically-Wound Spring Steel Wire
Color      :      Crystal Clear
Bend Radius      :      3-1/2 in
Resistance Properties      :      Chemical
Temperature Low      :      15 deg F
Series      :      POLYWIRE® PLUS K7300
Temperature High      :      150 deg F
Nominal Size      :      1 in
Outside Diameter      :      1.464 in
Inside Diameter      :      1 in
Length      :      100 ft

A unique crystal clear phthalate-free PVC hose suitable for applications requiring a vacuum hose with higher pressure capability or as a pressure hose with vacuum capability.

  • Wire helix reinforcement prevents kinking or collapsing
  • Electrogalvanized helical steel wire can be used for static dissipation
  • Yarn reinforcement provides higher working pressure
  • Heavy-duty construction prevents hose OD from expanding and ID from collapsing
  • Crystal clear allows visual confirmation of product flow
  • Glass smooth interior reduces material build-up
  • Inner contact surface material is NSF certified for food applications
  • Self-extinguishing, non-marking, silicone-free

Applications: For pressure and vacuum applications which require excellent kink-resistance, water transfer and liquid food transfer
