TIPCO Technologies K3150-06X500R
Send Print
  1. pin-int

TIPCO Technologies K3150-06X500R

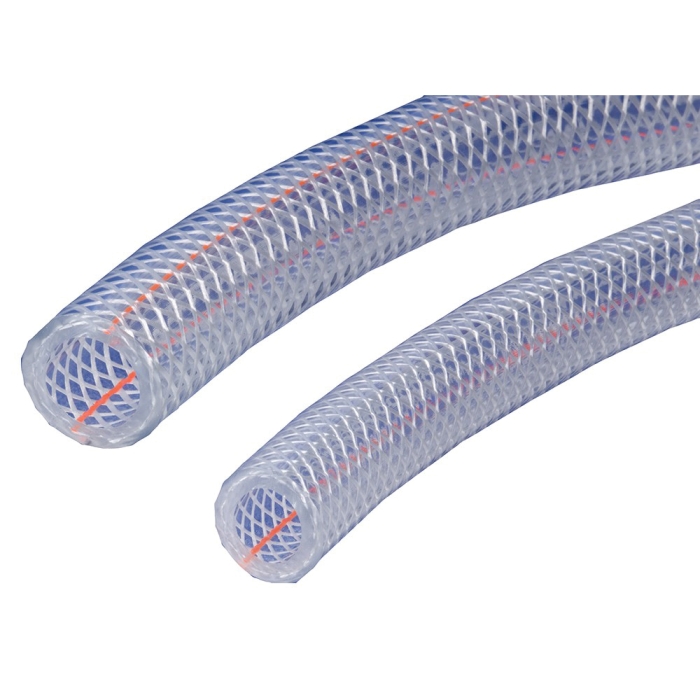

TIPCO Technologies, Clear Braided Tubing, Standard Wall Food and Beverage Hose, Reel, 3/8 in, 500 ft L

  • Manufacturers: TIPCO Technologies
  • Brand Name: TIPCO Technologies
  • Tipco Part No: TIPCO CBT-3/8 IN
  • MPN: K3150-06X500R
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

TIPCO Technologies, Clear Braided Tubing, Standard Wall Food and Beverage Hose, Reel, 3/8 in, 500 ft L

Product Type      :      Food and Beverage Hose
Pressure Rating      :      225 psi at 70 deg F, 125 psi at 122 deg F
Material      :      PVC
Construction      :      Spiraled Polyester Yarn and Longitudinal Orange Tracer Yarns
Color      :      Crystal Clear
Resistance Properties      :      Chemical
Temperature Low      :      25 deg F
Series      :      CLEARBRAID® K3150
Temperature High      :      150 deg F
Nominal Size      :      3/8 in
Dash Size      :      6
Outside Diameter      :      0.594 in
Inside Diameter      :      3/8 in
Length      :      500 ft

A lightweight standard wall crystal clear phthalate-free yarn reinforced hose suitable for a wide variety of food and beverage applications.

  • Crystal clear phthalate-free PVC compound construction
  • Reinforced with spiraled polyester yarn and longitudinal orange tracer yarns for identification
  • Constructed with phthalate-free compounds
  • Crystal clear allows visual confirmation of product flow
  • Longitudinally-reinforced to reduce elongation under pressure
  • Lightweight, self-extinguishing, non-marking, silicone-free and non-conductive
  • One-piece length
  • Compound hardness 73 +/-3 shore A
  • Reel packaging

Applications: Air and water lines, air breathing lines, deionized water, food and beverage dispensing, liquid food products, packaging machines, potable water transfer, powdered food products and pneumatic lines
