Aeroquip® by Danfoss 2580-4

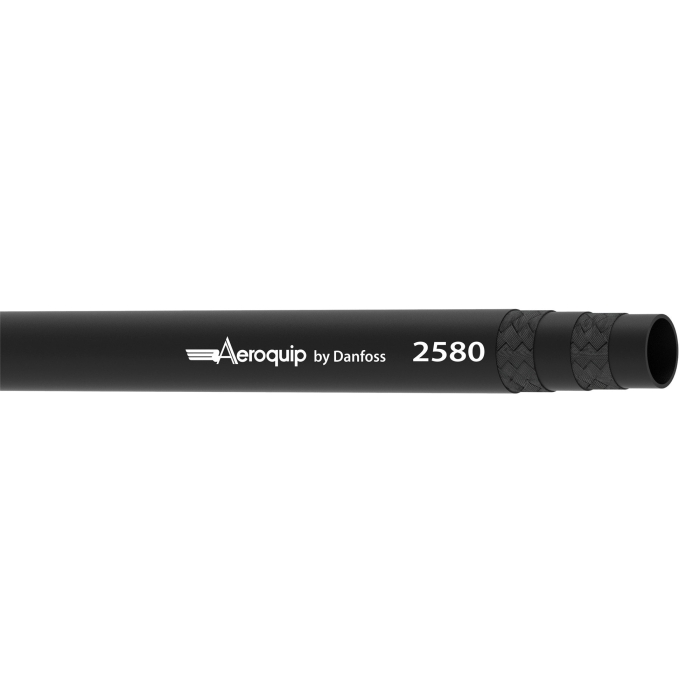

Aeroquip® by Danfoss 2580 Series 2580-4 Medium-Pressure Marine Hose, 0.19 in, 0.19 in ID, 0.52 in OD, 04, 1 ft L, Black

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip® by Danfoss
  • Tipco Part No: AER 2580-4
  • MPN: 2580-4
  • UPC: 678146072405
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® by Danfoss Medium-Pressure Marine Hose, 2580 Series, 0.19 Nominal, 04 Dash, 0.52 Outside Diameter, 0.19 Inside Diameter, 0.165 Wall Thickness, 1 Length, 1000, Nitrile, Rubber Cover, 2-Ply Braided Construction, Black, 3 Bend Radius, Resistance Properties: Abrasion, -40 Temperature Low, 212 Temperature High

Series      :      2580 Series
Nominal Size      :      0.19 in
Dash Size      :      04
Outside Diameter      :      0.52 in
Inside Diameter      :      0.19 in
Wall Thickness      :      0.165 in
Length      :      1 ft
Pressure Rating      :      1000 psi
Material      :      Nitrile
Cover Material      :      Rubber
Construction      :      2-Ply Braided
Color      :      Black
Bend Radius      :      3 in
Resistance Properties      :      Abrasion
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
