Gates® 46841764

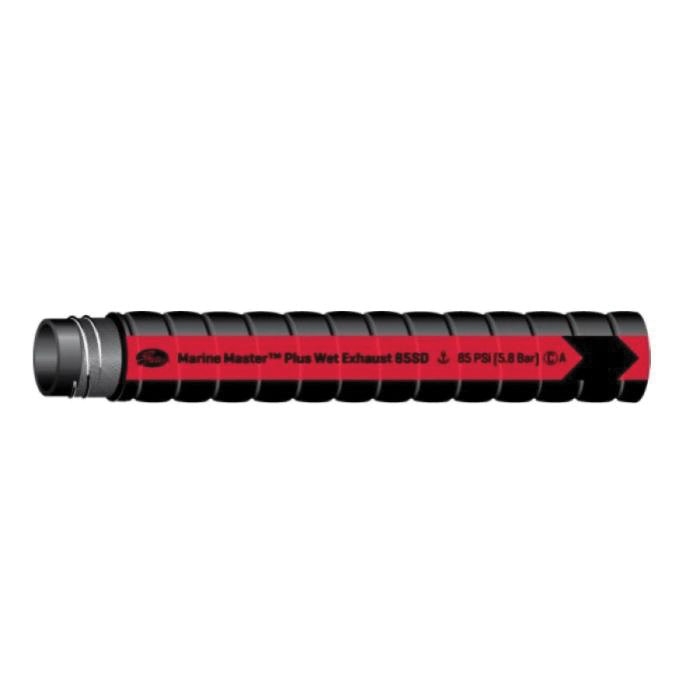

Gates® Marine Master® Plus™ 4684CF Series 46841764 Wet Exhaust Hose, 4-1/2 in, 4-1/2 in ID, 4.94 in OD, 10 ft L, 25 psi
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 4684CF-41/2
- MPN: 46841764
- UPC: 072053216387
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Marine wet exhaust and general-purpose applications. Suitable for coolant lines where tight bends are required. Wet exhaust hose with embedded helical wires and corrugated cover for tight bend radius, improved flexibility, kink and vacuum collapse resistance and fuel/oil-resistance.
Gates® Wet Exhaust Hose, 4684CF Series, 4-1/2 in Nominal, 4.94 in Outside Diameter, 4-1/2 in Inside Diameter, 10 ft Length, 25 psi, Nitrile, Chloroprene Cover, Synthetic Fabric with Built-In Wire Construction, Black, 27 in Bend Radius, Resistance Properties: Heat, Oil, Temperature Low: -40 deg F, Temperature High: 212 deg F
| Product Type | : | Wet Exhaust Hose |
| Series | : | 4684CF Series |
| Nominal Size | : | 4-1/2 in |
| Outside Diameter | : | 4.94 in |
| Inside Diameter | : | 4-1/2 in |
| Length | : | 10 ft |
| Pressure Rating | : | 25 psi |
| Material | : | Nitrile |
| Cover Material | : | Chloroprene |
| Construction | : | Synthetic Fabric with Built-In Wire |
| Color | : | Black |
| Bend Radius | : | 27 in |
| Resistance Properties | : | Heat, Oil |
| Temperature Low | : | -40 deg F |
| Temperature High | : | 212 deg F |
- Nitrile tube, synthetic fabric reinforcement plies with two embedded helical wires, neoprene cover with wrapped appearance
- Hose bead fitting fastened with hose clamps
- Type A (chloroprene), black corrugated with red stripe cover
