Gates® 4684CF-11/2
Send Print
  1. pin-int

Gates® 4684CF-11/2

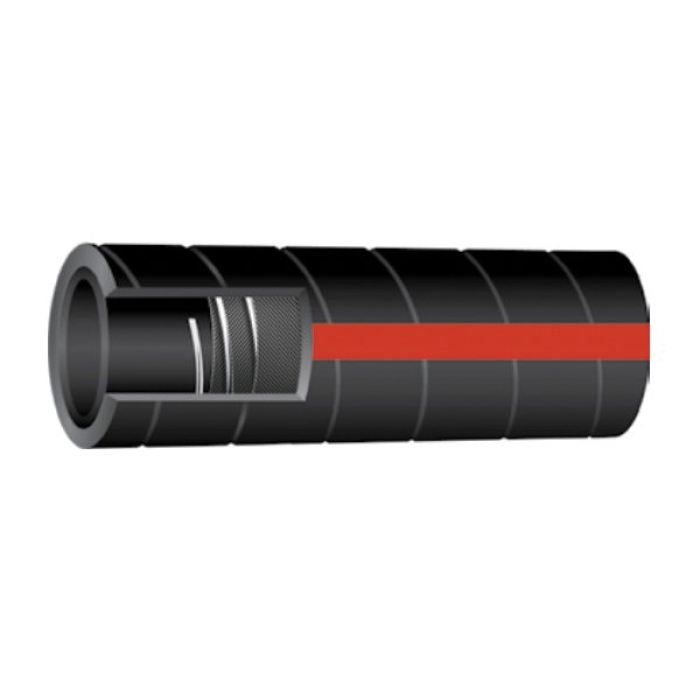

Gates® Marine Master® Plus™ 4684CF Series 4684CF-11/2 Coolant Hose, 1-1/2 in ID, 1.97 in OD, 88 psi, Nitrile, Black/Red

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 4684CF-11/2
  • MPN: 4684CF-11/2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Coolant Hose, 4684CF Series, 1.97 in Outside Diameter, 1-1/2 in Inside Diameter, 0.21 in Wall Thickness, 88 psi, Nitrile, Neoprene Cover, Synthetic Fabric Plies with 2-Embedded Helical Wires Construction, Black/Red, 4 in Bend Radius, Resistance Properties: Heat, Oil, Temperature Low: -40 deg F, Temperature High: 212 deg F

Product Type      :      Coolant Hose
Series      :      4684CF Series
Outside Diameter      :      1.97 in
Inside Diameter      :      1-1/2 in
Wall Thickness      :      0.21 in
Pressure Rating      :      88 psi
Material      :      Nitrile
Cover Material      :      Neoprene
Construction      :      Synthetic Fabric Plies with 2-Embedded Helical Wires
Color      :      Black/Red
Bend Radius      :      4 in
Resistance Properties      :      Heat, Oil
Temperature Low      :      -40 deg F
Temperature High      :      212 deg F
