Continental 20025493

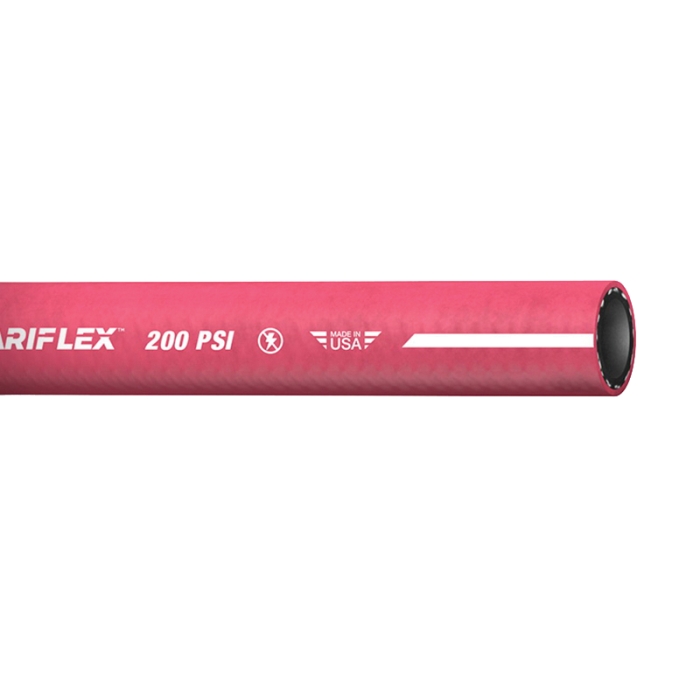

Continental VariFlex™ 20025493 Red Nitrile Synthetic Rubber Air and Multi-Purpose Hose, 3/4 in NPT, 500 ft L, 200 psi

  • Manufacturers: Continental Industries
  • Brand Name: Continental
  • Tipco Part No: CTI 20025493
  • MPN: 20025493
  • Min. Order Qty: 500
  • Qty. Interval: 500
  • Register to see Availability

Continental VariFlex™ Air and Multi-Purpose Hose, Nominal Size: 3/4 in, Connection Type: NPT, 1.13 in OD, 0.75 in ID, 500 ft Length, 200 psi, Nitrile Synthetic Rubber, Chemivic™ Synthetic Rubber Cover, Construction: Spiral Synthetic Yarn, Red, Resistance Properties: Oil, -20 deg F Low, 210 deg F High

Product Type      :      Air and Multi-Purpose Hose
Pressure Rating      :      200 psi
Material      :      Nitrile Synthetic Rubber
Cover Material      :      Chemivic™ Synthetic Rubber
Construction      :      Spiral Synthetic Yarn
Color      :      Red
Resistance Properties      :      Oil
Temperature Low      :      -20 deg F
Temperature High      :      210 deg F
Nominal Size      :      3/4 in
Connection Type      :      NPT
Outside Diameter      :      1.13 in
Inside Diameter      :      0.75 in
Length      :      500 ft
  • Non-conductive, minimum electrical resistance greater than 1 MOhm/in of hose length at 1000 VDC
  • Nitrile synthetic rubber, ARPM Class A (high oil resistance)
  • Chemivic™ synthetic rubber cover, ARPM class A (high oil resistance)

Applications: For industrial air service, compressor lines, pneumatic tools, low-pressure spray and many other applications where the need for oil resistance is high
