Parker® 7096-75304 TIPCO YGP 3/4IN 300PSI | Tipco Technologies
Parker® 7096-75304
Send Print
  1. pin-int

Parker® 7096-75304

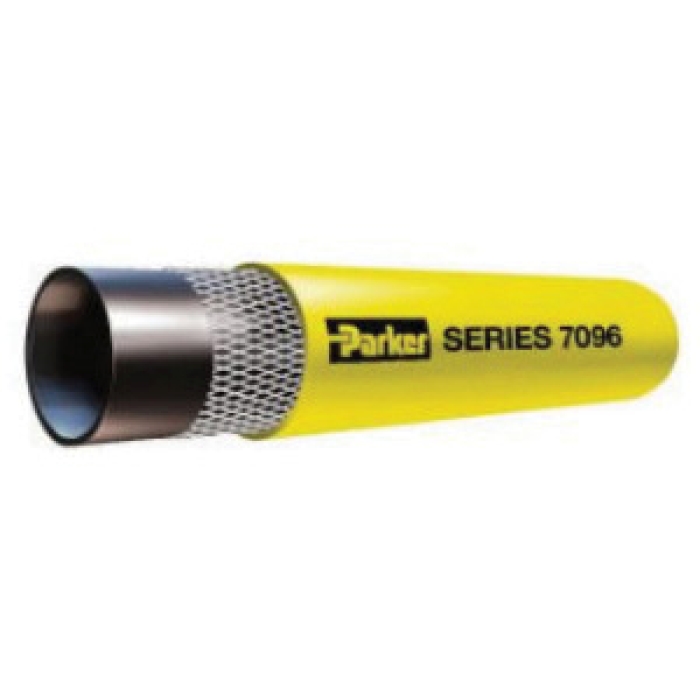

Parker® GST® II 7096 Yellow EPDM General-Purpose Air and Water Hose, 3/4 in, 400 ft L, 300 psi

  • Manufacturers: Parker Hannifin
  • Brand Name: Parker®
  • Tipco Part No: TIPCO YGP 3/4IN 300PSI
  • MPN: 7096-75304
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Parker® GST® II General-Purpose Air and Water Hose, Series: 7096, Nominal Size: 3/4 in, 1.16 in OD, 3/4 in ID, 400 ft Length, 300 psi, EPDM, EPDM Cover, Construction: 4-Textile Plies, Finish: Smooth, Yellow, 6 in Bend Radius, Resistance Properties: Heat, Oil, Ozone, Sunlight, Weather, -40 deg F Low, 212 deg F High, For Use With: HY Coupling Fittings

California residents see Prop 65 WARNINGS

Product Type      :      Air and Water Hose
Pressure Rating      :      300 psi
Material      :      EPDM
Cover Material      :      EPDM
Construction      :      4-Textile Plies
Finish      :      Smooth
Color      :      Yellow
Bend Radius      :      6 in
Resistance Properties      :      Heat, Oil, Ozone, Sunlight, Weather
Temperature Low      :      -40 deg F
Series      :      7096
Temperature High      :      212 deg F
For Use With      :      HY Coupling Fittings
Nominal Size      :      3/4 in
Outside Diameter      :      1.16 in
Inside Diameter      :      3/4 in
Length      :      400 ft

Parker® GST® II general-purpose industrial air and water hose provides excellent service across multiple applications. The hose tube is compatible with light oil mists for tool lubrication. Easy identification and also-resists abrasion and weathering. GST® II hose is available in long continuous lengths for efficient inventory management and maximum utility at cramped or hard to reach job sites. The hose is qualified with permanent crimp couplings for a safe and secure connection and is a versatile hose for many common industrial applications.

  • Black EPDM for versatile and economical service to 212 deg F
  • Multiple textile plies for strength and kink resistance
  • Excellent weathering resistance withstands exposure to the elements
  • Qualified with steel crimp couplings for a durable, safe and secure connection
  • 4:1 design factor

Standards/Certifications: ARPM Class A Certified

  • Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

    Applications: For air compressors and pneumatic tools, including those subject to light oil mists for lubrication, shop air hose, water hose for clean-up/washdown, cooling and spray, agriculture, construction and general industrial applications

    Safety Notes: Failure or improper selection or improper use of the products described herein or related items can cause death, personal injury and property damage.

  • This document and other information from parker-hannifin corporation, its subsidiaries and authorized distributors provide product or system options for further investigation by users having technical expertise.
  • The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.
  • The user must analyze all aspects of the application, follow applicable industry standards and follow the information concerning the product in the current product catalog and in any other materials provided from parker or its subsidiaries or authorized distributors.
  • To the extent that parker or its subsidiaries or authorized distributors provide component or system options based upon data or specifications provided by the user, the user is responsible for determining that such data and specifications are suitable and sufficient for all applications and reasonably foreseeable uses of the components or systems.
