Danfoss H33208-50C ALT H33208 | Tipco Technologies
Danfoss H33208-50C
Send Print
  1. pin-int

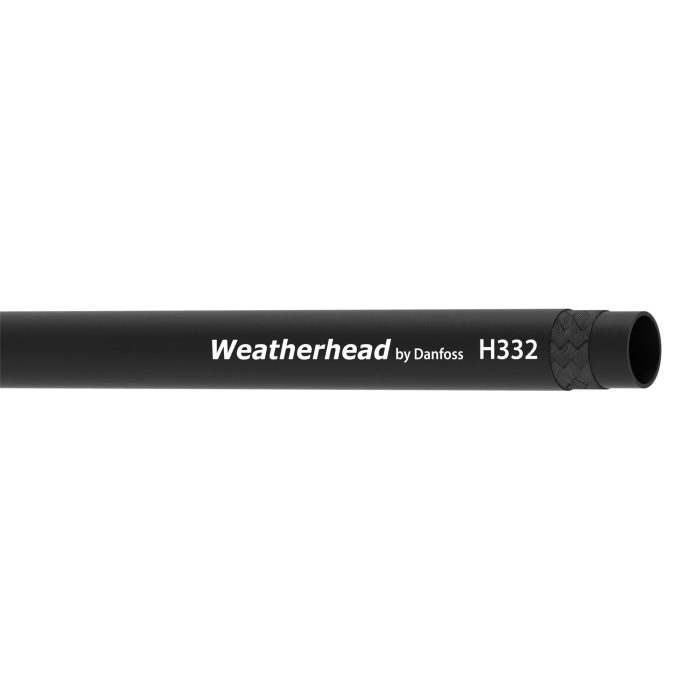

Danfoss H33208-50C

Danfoss H332 Series H33208-50C General-Purpose Hose, 1/2 in, 1/2 in ID, 3/4 in OD, 08, 50 ft L, 300 psi, Black

  • Manufacturers: Danfoss
  • Brand Name: Danfoss
  • Tipco Part No: ALT H33208
  • MPN: H33208-50C
  • UPC: 639789290106
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Danfoss General-Purpose Hose, 300, Chlorinated Polyethylene, Chlorinated Polyethylene Cover, 1-Ply Braided Construction, Black, 5 Bend Radius, Resistance Properties: Abrasion, -40 Temperature Low, H332 Series, 302 Temperature High, 1/2 Nominal, 08 Dash, 3/4 Outside Diameter, 1/2 Inside Diameter, 50 Length

Pressure Rating      :      300 psi
Material      :      Chlorinated Polyethylene
Cover Material      :      Chlorinated Polyethylene
Construction      :      1-Ply Braided
Color      :      Black
Bend Radius      :      5 in
Resistance Properties      :      Abrasion
Temperature Low      :      -40 deg F
Series      :      H332 Series
Temperature High      :      302 deg F
Nominal Size      :      1/2 in
Dash Size      :      08
Outside Diameter      :      3/4 in
Inside Diameter      :      1/2 in
Length      :      50 ft
  • pdfCatalog https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Danfoss_H33208_50C_Catalog.pdf
