Gates® 36021055

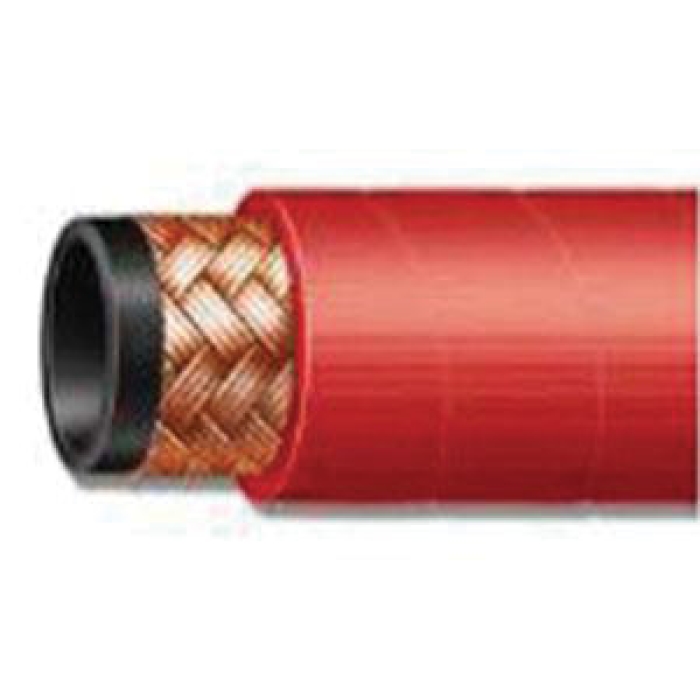

Gates® 36021055 Steam Hose, 3/4 in, 3/4 in ID, 1.27 in OD, 15 m L, 250 psi, EPDM, Red

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • Tipco Part No: GAT 3/4IN RED PLANT MASTER STEAM 250
  • MPN: 36021055
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Gates® Steam Hose, 250 psi, EPDM, Elastomer Cover, 2-Braid High Tensile Steel Wire Construction, Red, 9 in Bend Radius, Resistance Properties: Heat, Oil, Temperature Low: -40 deg F, 3062EL Series, Temperature High: 450 deg F, 3/4 in Nominal, 1.27 in Outside Diameter, 3/4 in Inside Diameter, 15 m Length

Product Type      :      Steam Hose
Pressure Rating      :      250 psi
Material      :      EPDM
Cover Material      :      Elastomer
Construction      :      2-Braid High Tensile Steel Wire
Color      :      Red
Bend Radius      :      9 in
Resistance Properties      :      Heat, Oil
Temperature Low      :      -40 deg F
Series      :      3062EL Series
Temperature High      :      450 deg F
Nominal Size      :      3/4 in
Outside Diameter      :      1.27 in
Inside Diameter      :      3/4 in
Length      :      15 m
