Kuriyama T340AH100X50
Send Print
  1. pin-int

Kuriyama T340AH100X50

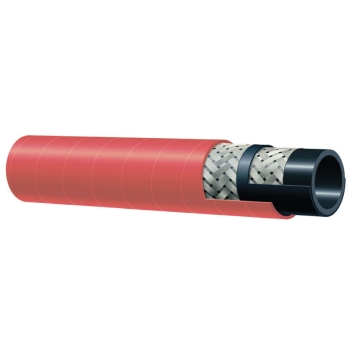

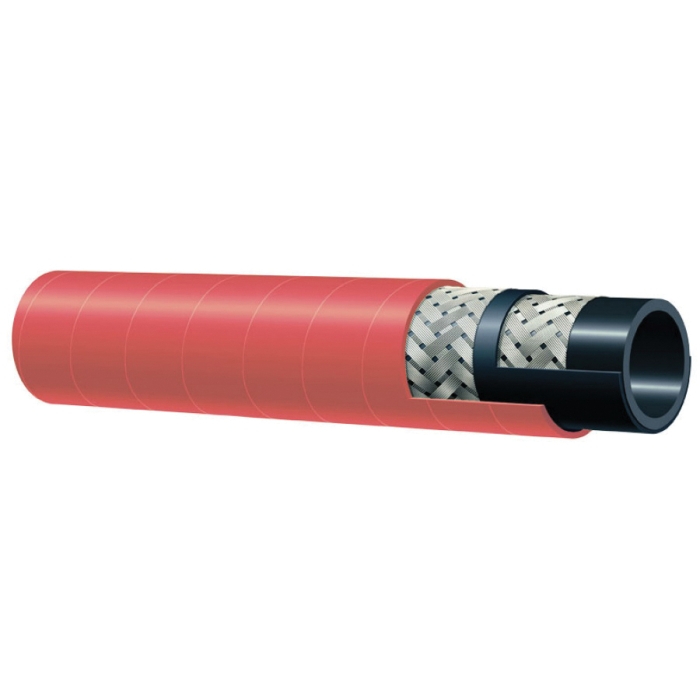

Kuriyama Alfagomma® T340AH Red EPDM Steam Hose, 1 in, 50 ft L, 270 psi

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • Tipco Part No: KUR T340AH100X50
  • MPN: T340AH100X50
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Kuriyama Alfagomma® Steam Hose, Series: T340AH, Nominal Size: 1 in, 1-1/2 in OD, 1 in ID, 50 ft Length, 270 psi, EPDM, EPDM Cover, Construction: High-Tensile Steel 2-Wire Braids, Red, 10 in Bend Radius, Resistance Properties: Heat, -40 deg F Low, 410 deg F High

Product Type      :      Steam Hose
Pressure Rating      :      270 psi
Material      :      EPDM
Cover Material      :      EPDM
Construction      :      High-Tensile Steel 2-Wire Braids
Color      :      Red
Bend Radius      :      10 in
Resistance Properties      :      Heat
Temperature Low      :      -40 deg F
Series      :      T340AH
Temperature High      :      410 deg F
Nominal Size      :      1 in
Outside Diameter      :      1-1/2 in
Inside Diameter      :      1 in
Length      :      50 ft
  • Red or black heat-resistant EPDM cover
  • Wrapped cover fabric impression
  • Pin pricked cover to allow venting
  • Black heat-resistant extruded EPDM tube

Applications: For transfer of saturated steam up to 270 psi and 410 deg F

  • pdfSpecification Sheet https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_T340AH100X50_SS.pdf
