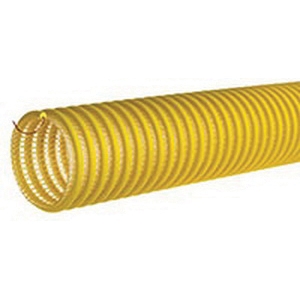

Kuriyama Tigerflex® Vapor Recovery Hose, VAPR Series, 4.77 in OD, 4.04 in ID, 100 ft Length, 55 psi, Polyurethane, 8 in Bend Radius, -40 deg F Low, 140 deg F High
| Product Type | : | Vapor Recovery Hose |
| Pressure Rating | : | 55 psi |
| Material | : | Polyurethane |
| Bend Radius | : | 8 in |
| Temperature Low | : | -40 deg F |
| Series | : | VAPR |
| Temperature High | : | 140 deg F |
| Outside Diameter | : | 4.77 in |
| Inside Diameter | : | 4.04 in |
| Length | : | 100 ft |
- Durable reinforced construction polyester reinforcement provides resistance against instances of hose tearing due to pulling or hanging
- Well-suited for demanding terminal use
- Lightweight provides durability similar to that of a drop hose, but in a lighter weight version
- Cold Flex™ materials hose remains flexible in severe sub-zero temperatures
- Transparent construction provides visual confirmation if fuel backs up into the vapor recovery system
- Grounding wire - multi-strand wire helps prevent the build-up of static electricity for added safety and to help keep material flowing smoothly, it's embedded within the rigid helix to prevent contamination of transferred materials
- Rigid helix design protects hose tube from cover wear and allows hose to slide easily over rough surfaces
- Biofuel compatible specially designed to handle gasoline, ethanol, diesel and biodiesel vapors
- Non-permeable construction - won't swell or become stiff like conventional rubber hoses
- Provides for longer hose life and lower operating costs
- Phthalate-free
Applications: Vapor recovery during terminal loading, vapor recovery for fuel delivery
