Aeroquip® WH004-32
Send Print
  1. pin-int

Aeroquip® WH004-32

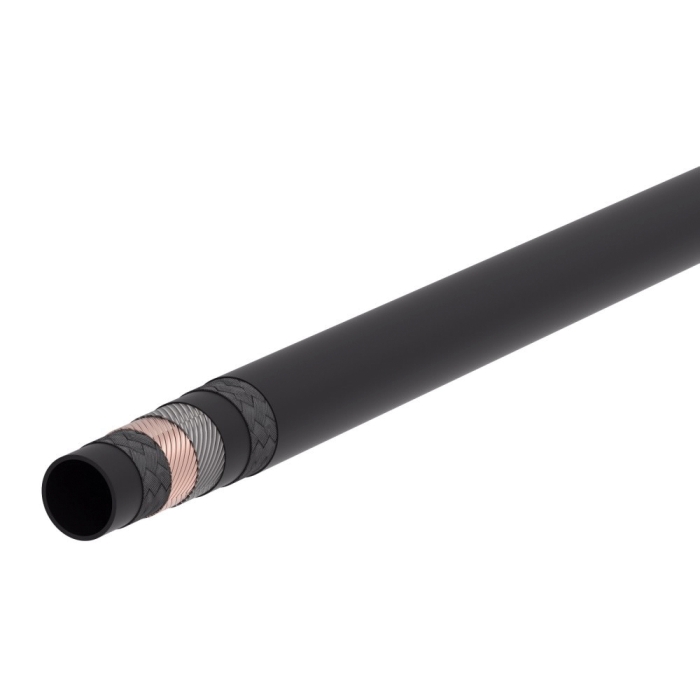

Aeroquip® WH004 Black Synthetic Rubber Hydraulic Suction Hose, 2 in, 1 ft L, 100 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER WH004-32
  • MPN: WH004-32
  • UPC: 678146212702
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Hydraulic Suction Hose, WH004 Series, Nominal Size: 2 in, Dash Size: 32, 2.49 in OD, 2 in ID, 1-1/2 in Thick Wall, 1 ft Length, 100 psi, Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Ply Braid Fabric and Wire, Black, 3.49 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 212 deg F High

Product Type      :      Hydraulic Suction Hose
Pressure Rating      :      100 psi
Material      :      Synthetic Rubber
Cover Material      :      Synthetic Rubber
Construction      :      2-Ply Braid Fabric and Wire
Color      :      Black
Bend Radius      :      3.49 in
Resistance Properties      :      Abrasion, Oil
Temperature Low      :      -40 deg F
Series      :      WH004
Temperature High      :      212 deg F
Nominal Size      :      2 in
Dash Size      :      32
Outside Diameter      :      2.49 in
Inside Diameter      :      2 in
Wall Thickness      :      1-1/2 in
Length      :      1 ft
  • Maximum durability under harsh operating conditions
  • Robust construction able to withstand highest pressures
  • System engineered to extend hose assembly life

Applications: For hydraulics, crude fuel, lubricating oils, gasoline, air, water and chemical transfer
