Aeroquip® FC619-20

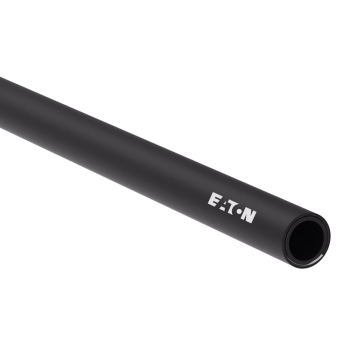

Aeroquip® FC619 Black AQP Elastomer Hydraulic Suction Hose, 1-1/4 in, 12 in L, 200 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC619-20
  • MPN: FC619-20
  • UPC: 678146145390
  • Min. Order Qty: 25
  • Qty. Interval: 25
  • Register to see Availability

Aeroquip® Hydraulic Suction Hose, FC619 Series, Nominal Size: 1-1/4 in, Dash Size: 20, 1.75 in OD, 1.25 in ID, 1/4 in Thick Wall, 12 in Length, 200 psi, AQP Elastomer, Synthetic Rubber Cover, Construction: Helical Wire Between Two Textile Reinforcement Layer, Black, 4 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 275 deg F High

Product Type      :      Hydraulic Suction Hose
Pressure Rating      :      200 psi
Material      :      AQP Elastomer
Cover Material      :      Synthetic Rubber
Construction      :      Helical Wire Between Two Textile Reinforcement Layer
Color      :      Black
Bend Radius      :      4 in
Resistance Properties      :      Abrasion
Temperature Low      :      -40 deg F
Series      :      FC619
Temperature High      :      275 deg F
Nominal Size      :      1-1/4 in
Dash Size      :      20
Outside Diameter      :      1.75 in
Inside Diameter      :      1.25 in
Wall Thickness      :      1/4 in
Length      :      12 in

Applications: Petroleum, lubricating oils, fuel, gasoline, air and water
