Aeroquip® FC619-48
Send Print
  1. pin-int

Aeroquip® FC619-48

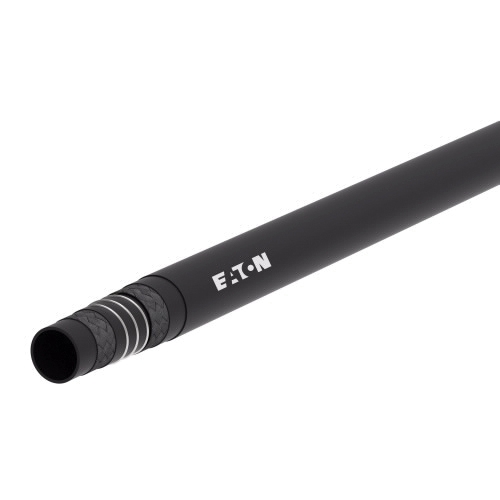

Aeroquip® FC619 Black AQP Elastomer Hydraulic Suction Hose, 3 in, 12 in L, 62 psi

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FC619-48
  • MPN: FC619-48
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Hydraulic Suction Hose, FC619 Series, Nominal Size: 3 in, Dash Size: 48, 3.75 in OD, 3 in ID, 12 in Length, 62 psi, AQP Elastomer, Synthetic Rubber Cover, Construction: Helical Wire Between Two Textile Reinforcement Layer, Black, 18 in Bend Radius, Resistance Properties: Abrasion, -40 deg F Low, 275 deg F High

Product Type      :      Hydraulic Suction Hose
Pressure Rating      :      62 psi
Material      :      AQP Elastomer
Cover Material      :      Synthetic Rubber
Construction      :      Helical Wire Between Two Textile Reinforcement Layer
Color      :      Black
Bend Radius      :      18 in
Resistance Properties      :      Abrasion
Temperature Low      :      -40 deg F
Series      :      FC619
Temperature High      :      275 deg F
Nominal Size      :      3 in
Dash Size      :      48
Outside Diameter      :      3.75 in
Inside Diameter      :      3 in
Length      :      12 in

Applications: Petroleum, lubricating oils, fuel, gasoline, air and water
