Coilhose® PE021-100N

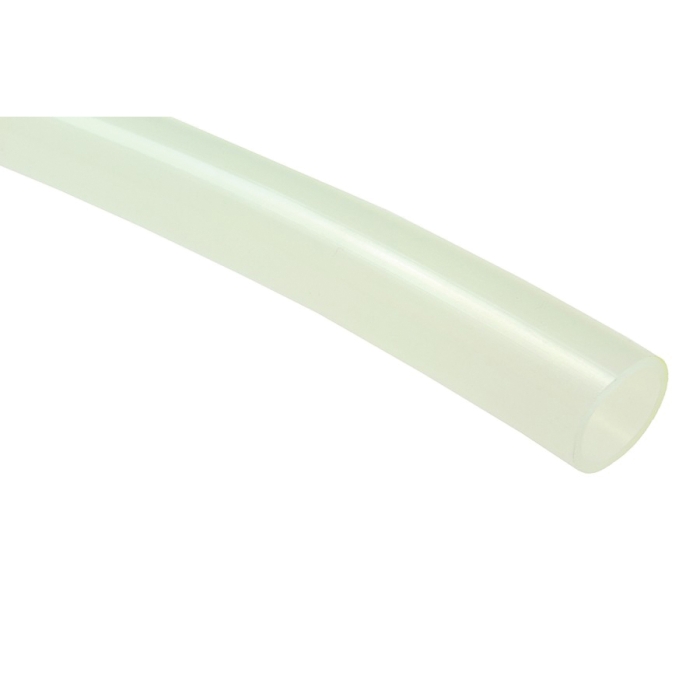

Coilhose® PE021 Natural Polyethylene Tubing, 1/8 in, 100 ft L, 305 psi

  • Manufacturers: Coilhose Pneumatics
  • Brand Name: Coilhose®
  • Tipco Part No: COI PE021-100N
  • MPN: PE021-100N
  • UPC: 029292312837
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Coilhose® Tubing, Series: PE021, Nominal Size: 1/8 in, 0.12 in OD, 0.06 in ID, 100 ft Length, Polyethylene, Natural, 305 psi, 0.031 in Thick Wall, Resistance Properties: Chemical, Solvent, -40 to 150 deg F

Product Type      :      Tubing
Wall Thickness      :      0.031 in
Resistance Properties      :      Chemical, Solvent
Temperature Rating      :      -40 to 150 deg F
Series      :      PE021
Nominal Size      :      1/8 in
Outside Diameter      :      0.12 in
Inside Diameter      :      0.06 in
Length      :      100 ft
Material      :      Polyethylene
Color      :      Natural
Pressure Rating      :      305 psi

Polyethylene is one of the most popular choices for low pressure tubing due to its resistance to most chemicals and solvents, good flexibility and economical cost. Our polyethylene tubing is extruded from high-quality resin. Compatible with Coilock push-to-connect and poly-tube fittings.

  • Up to 28 in-Hg vacuum rating
  • 3:1 safety factor
  • 50 shore D hardness

Standards/Certifications: FDA Approved

  • NSF 51 Certified
