Coilhose® PT0606-100R COI PT0606-100-R | Tipco Technologies
Coilhose® PT0606-100R
Send Print
  1. pin-int

Coilhose® PT0606-100R

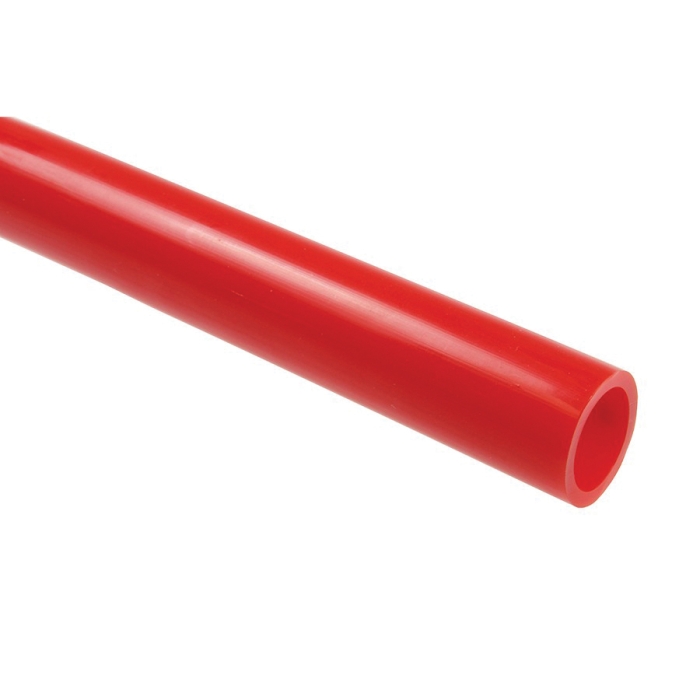

Coilhose® PT0606 Red Polyurethane Tubing, 3/8 in, 100 ft L, 170 psi

  • Manufacturers: Coilhose Pneumatics
  • Brand Name: Coilhose®
  • Tipco Part No: COI PT0606-100-R
  • MPN: PT0606-100R
  • UPC: 029292405102
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Coilhose® Tubing, Series: PT0606, Nominal Size: 3/8 in, 3/8 in OD, 1/4 in ID, 100 ft Length, Polyurethane, Red, 170 psi, 0.065 in Thick Wall, Resistance Properties: Kinking, -40 to 165 deg F, For Use With: Coil Lock Push-to-Connect and Poly-Tube Fittings

Product Type      :      Tubing
Wall Thickness      :      0.065 in
Resistance Properties      :      Kinking
Temperature Rating      :      -40 to 165 deg F
For Use With      :      Coil Lock Push-to-Connect and Poly-Tube Fittings
Series      :      PT0606
Nominal Size      :      3/8 in
Outside Diameter      :      3/8 in
Inside Diameter      :      1/4 in
Length      :      100 ft
Material      :      Polyurethane
Color      :      Red
Pressure Rating      :      170 psi

Coilhose® Pneumatics polyurethane is extruded from high-quality ether-based resin. This means that the tubing will not degrade over time when exposed to water. Polyurethane tubing offers increased flexibility, resistance to kinking and a broad temperature range. All our polyurethane tubing is 95A durometer and can be used with either push-to-connect fittings or hose barbs. Compatible with Coilock push-to-connect fittings and poly-tube fittings.

  • 3:1 safety factor
  • UV stabilized

Standards/Certifications: UL94 HB Listed
