Coilhose® PT0815-100K
Send Print
  1. pin-int

Coilhose® PT0815-100K

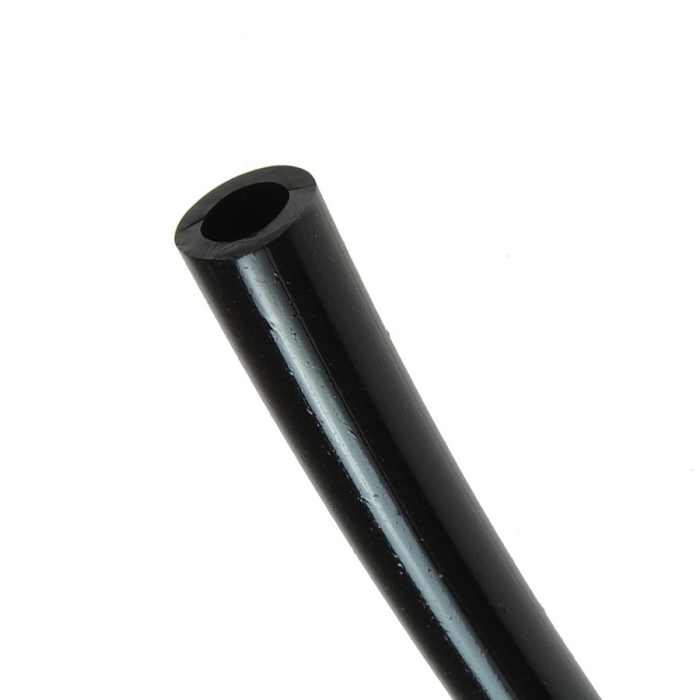

Coilhose® PT0815 Black Polyurethane Tubing, 8 mm, 100 ft L, 190 psi, 1.5 mm Thick Wall

  • Manufacturers: Coilhose Pneumatics
  • Brand Name: Coilhose®
  • Tipco Part No: COI PT0815-100K
  • MPN: PT0815-100K
  • UPC: 029292793230
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Coilhose® Tubing, PT0815 Series, Nominal Size: 8 mm, 8 mm OD, 5 mm ID, 100 ft Length, Polyurethane, Black, 190 psi, 1.5 mm Thick Wall, Resistance Properties: Kinking, -40 to 165 deg F

Product Type      :      Tubing
Wall Thickness      :      1.5 mm
Resistance Properties      :      Kinking
Temperature Rating      :      -40 to 165 deg F
Series      :      PT0815
Nominal Size      :      8 mm
Outside Diameter      :      8 mm
Inside Diameter      :      5 mm
Length      :      100 ft
Material      :      Polyurethane
Color      :      Black
Pressure Rating      :      190 psi

Coilhose® Pneumatics polyurethane is extruded from high-quality ether-based resin. This means that the tubing will not degrade over time when exposed to water. Polyurethane tubing offers increased flexibility, resistance to kinking and a broad temperature range. All our polyurethane tubing is 95A durometer and can be used with either push to connect fittings or hose barbs. Compatible with coilock push to connect fittings and poly tube fittings.

  • 3:1 safety factor
  • UV stabilized
