Stauff® SNK-127-V-O-O-12

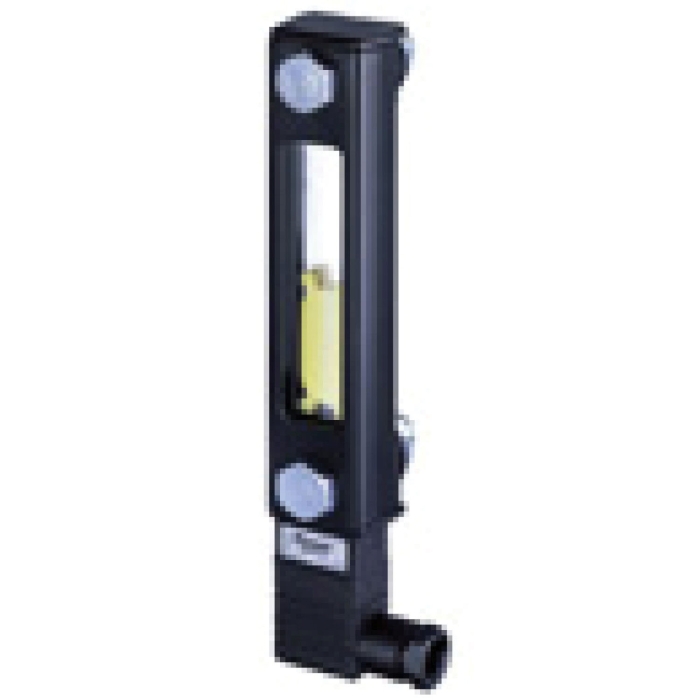

Stauff® SNK Black Aluminum Level Gauge with Visual/Electrical Fluid Level Indication, 127 mm, 29 psi, Polyamide Window, 61 mm L

  • Manufacturers: Stauff USA
  • Brand Name: Stauff®
  • Tipco Part No: STA SNK127VOO12
  • MPN: SNK-127-V-O-O-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Stauff® Level Gauge with Visual/Electrical Fluid Level Indication, SNK Series, Connection Size: 127 mm, Pressure Range: 29 psi, -22 to 176 deg F, Polyamide Window, Aluminum, Finish: Powder-Coated, Black, 61 mm Length, 215 mm Width, 34.5 mm Height, For Use With: Mineral and Petroleum-Based Hydraulic Fluids (HL and HLP)

California residents see Prop 65 WARNINGS

Product Type      :      Level Gauge
Material      :      Aluminum
Finish      :      Powder-Coated
Color      :      Black
Length      :      61 mm
Width      :      215 mm
Height      :      34.5 mm
For Use With      :      Mineral and Petroleum-Based Hydraulic Fluids (HL and HLP)
Series      :      SNK
Connection Size      :      127 mm
Pressure Range      :      29 psi
Temperature Rating      :      -22 to 176 deg F
Window Material      :      Polyamide
  • Electrical function break contact, opens at contact level (normally closed)
  • M12 metric ISO thread banjo bolt
  • Supplied without thermometer
  • FKM seal
  • IP65 protection rating - dust tight and protected against water jets
  • 10 mm minimum lateral distance to other magnetic components and cables
  • 8 Nm/5.9 ft-lb torque
