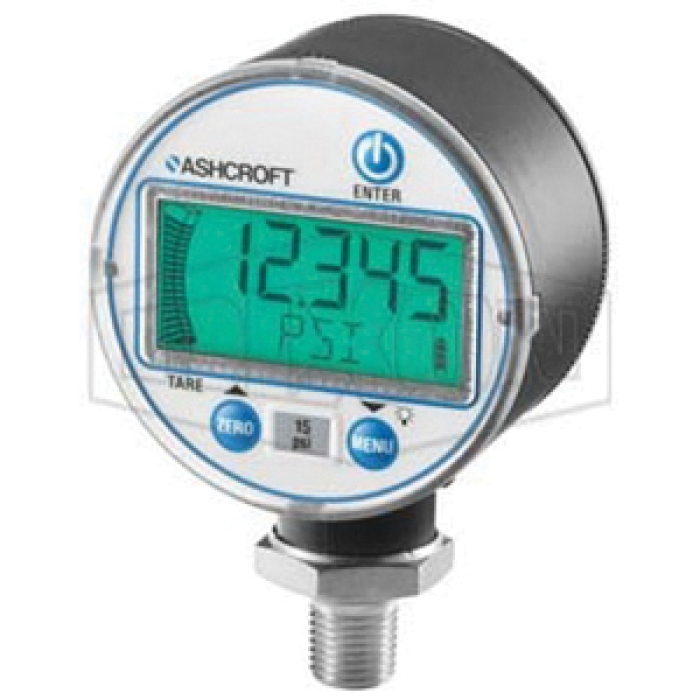

Dixon® General-Purpose Digital Gauge, Measuring System: psi, in-Hg, cm-Hg, mm-Hg, kPa, MPa, bar, kg/sq-cm, ft-H20, Pressure Range: 0 - 1000 psi, 2-1/2 in Dial Size, 0.5% Terminal Point Accuracy, -4 to 140 deg F, 5-Digit LCD Display, Lower Back Mount, ABS/Polycarbonate Case, Lens Material: Polycarbonate
California residents see Prop 65 WARNINGS
| Product Type | : | Digital Gauge |
| Measuring System | : | psi, in-Hg, cm-Hg, mm-Hg, kPa, MPa, bar, kg/sq-cm, ft-H20 |
| Pressure Range | : | 0 - 1000 psi |
| Dial Size | : | 2-1/2 in |
| Accuracy | : | 0.5% Terminal Point |
| Temperature Rating | : | -4 to 140 deg F |
| Display Type | : | 5-Digit LCD |
| Mounting Type | : | Lower Back |
| Case Material | : | ABS/Polycarbonate |
| Lens Material | : | Polycarbonate |
- Offers selectable units of measure so rather than purchasing one gauge for each unit of measure required, one gauge can be used for multiple units of measure
- Ideal for test applications and for use in technicians tool kits
- PSI, in. hg, cm Hg, mm Hg, kPa, MPa, bar, kg/sq-cm, ft H20 nine engineering units (accessed through keypad)
- 0.5% terminal point accuracy
- Five-digit LCD display with large size 0.48 in characters
- 20-segment bar graph display
- IP67 weather-proof enclosure, polycarbonate/ABS
- 17-4 pH stainless steel sensor with 316L stainless steel socket
- Polycarbonate window
- Two AA alkaline batteries included
- 2000 hr minimum battery life
Applications: For dry air applications and other media
