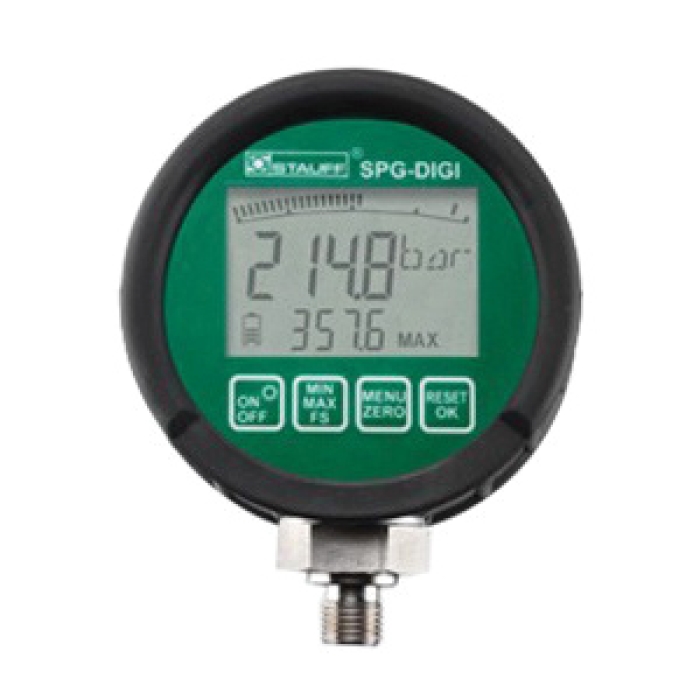

Stauff® Pressure Gauge, SPG-DIGI Series, Measuring System: psi, bar, MPa, kPa, mbar, Pressure Range: 0 - 5801 psi, 0 - 400 bar, Connection Size: 7/16-20 UNF, 0.5% Full Scale Accuracy, 14 - 122 deg F Ambient, -4 to 176 deg F Media, -4 to 140 deg F Storage, Digital Display, Die-Cast Zinc/TPE Case, Dimensions: 33 mm D
| Connection Size | : | 7/16-20 UNF |
| Product Type | : | Pressure Gauge |
| Series | : | SPG-DIGI |
| Measuring System | : | psi, bar, MPa, kPa, mbar |
| Pressure Range | : | 0 - 5801 psi, 0 - 400 bar |
| Accuracy | : | 0.5% Full Scale |
| Temperature Rating | : | 14 - 122 deg F Ambient, -4 to 176 deg F Media, -4 to 140 deg F Storage |
| Display Type | : | Digital |
| Case Material | : | Die-Cast Zinc/TPE |
| Dimensions | : | 33 mm D |
The Stauff® SPG-DIGI digital pressure gauges are intended to measure and display pressures in hydraulic systems, particularly for oils, lubricants and water. They can display the current measured values, as well as minimum and maximum values, with an accuracy of 0.5% of full scale. The Stauff® SPG-DIGI digital pressure gauges are available individually, or as part of a complete pressure test kit. They are very sturdy, reliable, easy-to-use and come with the CE mark (evidence of conformity compliance).
- Bar graph display (drag pointer)
- Backlit display
- Zero point correction
- Battery status indicator
- Gauge ability to swivel 360 deg
- Text display - 4-1/2 digit
- Size - 50 mm x 34 mm
- Actual value display 15 mm
- Minimum/maximum or FS display - 8 mm
- Wetted parts - stainless steel 1.4404, NBR (Buna-N), ceramics
- Seals - NBR (Buna-N)
- Pressure peak measurement with 10 ms sampling rate illuminated measured value display
- Relative humidity - < 85%
- Battery life maximum 600 hr
