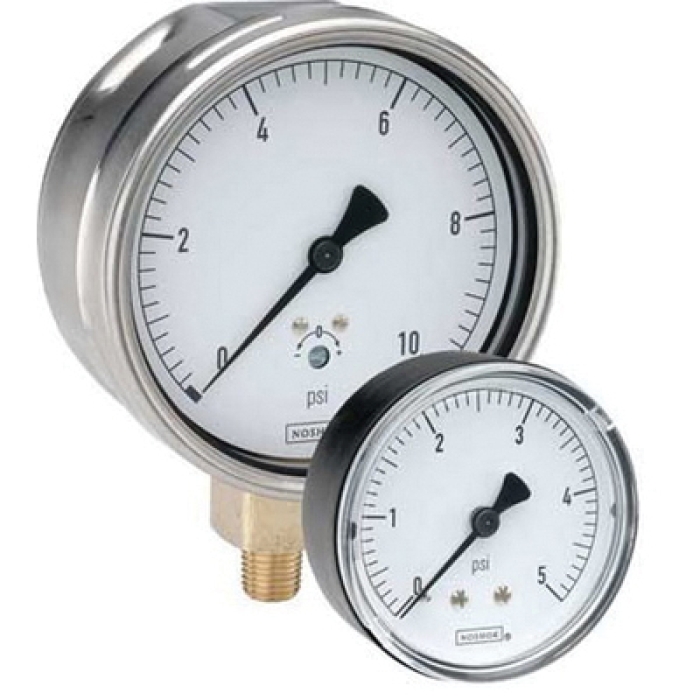

NOSHOK Low Diaphragm Dry Pressure Gauge, 200 Series, Measuring System: psi, Pressure Range: 0 - 5 psi, Connection Size: 1/4 in NPT, 2-1/2 in Dial Size, +/-1.6% Full Scale Accuracy, -4 to 140 deg F Ambient, -4 to 176 deg F Media, Analog Display, Back Mount, Steel Case, Lens Material: Acrylic, Aluminum Pointer, Stainless Steel Bezel, Finish: Black, Dimensions: 2.7 in W x 2.53 in D, Includes: Stainless Steel Bezel and U-Clamp, For Use With: Stainless Steel Bezel and U-Clamp
California residents see Prop 65 WARNINGS
| Product Type | : | Pressure Gauge |
| Connection Size | : | 1/4 in NPT |
| Mounting Type | : | Back |
| Case Material | : | Steel |
| Series | : | 200 |
| Lens Material | : | Acrylic |
| Accuracy | : | +/-1.6% Full Scale |
| Pointer Material | : | Aluminum |
| Finish | : | Black |
| Dimensions | : | 2.7 in W x 2.53 in D |
| Includes | : | Stainless Steel Bezel and U-Clamp |
| For Use With | : | Stainless Steel Bezel and U-Clamp |
| Measuring System | : | psi |
| Pressure Range | : | 0 - 5 psi |
| Dial Size | : | 2-1/2 in |
| Temperature Rating | : | -4 to 140 deg F Ambient, -4 to 176 deg F Media |
| Display Type | : | Analog |
| Bezel Material | : | Stainless Steel |
- Sensitive capsule-type, non-fillable dry gauge
- Vacuum ranges through 0 - 10 psi
- Copper alloy and brass wetted parts
- Measuring element - copper alloy diaphragm capsule
- Brass connection
- Aluminum dial, white background with black scale, UV-resistant
- Movement - brass and nickel silver with highly polished bearing surfaces
- Black painted case, black pointer
Applications: Ideal for applications including filter monitoring, gas distribution, HVAC, leak detection, level indication and medical
