NOSHOK® Pressure Gauge, 1.5" 304SS Case, 316SS Internals, 60 psi, 1/8 NPT Male Back Conn
California residents see Prop 65 WARNINGS
| Material | : | 304 Stainless Steel with Safety Relief Plug, Optional 316 Stainless Steel |
| Product Type | : | Pressure Gauge |
| Connection Size | : | 1/8 in NPT |
| Mounting Type | : | Back |
| Case Material | : | 304 Stainless Steel |
| Series | : | 400/500 |
| Connection Type | : | National Pipe Thread (NPT) |
| Lens Material | : | Instrument Glass |
| Accuracy | : | +/-2.5% Full Scale |
| Pointer Material | : | Aluminum |

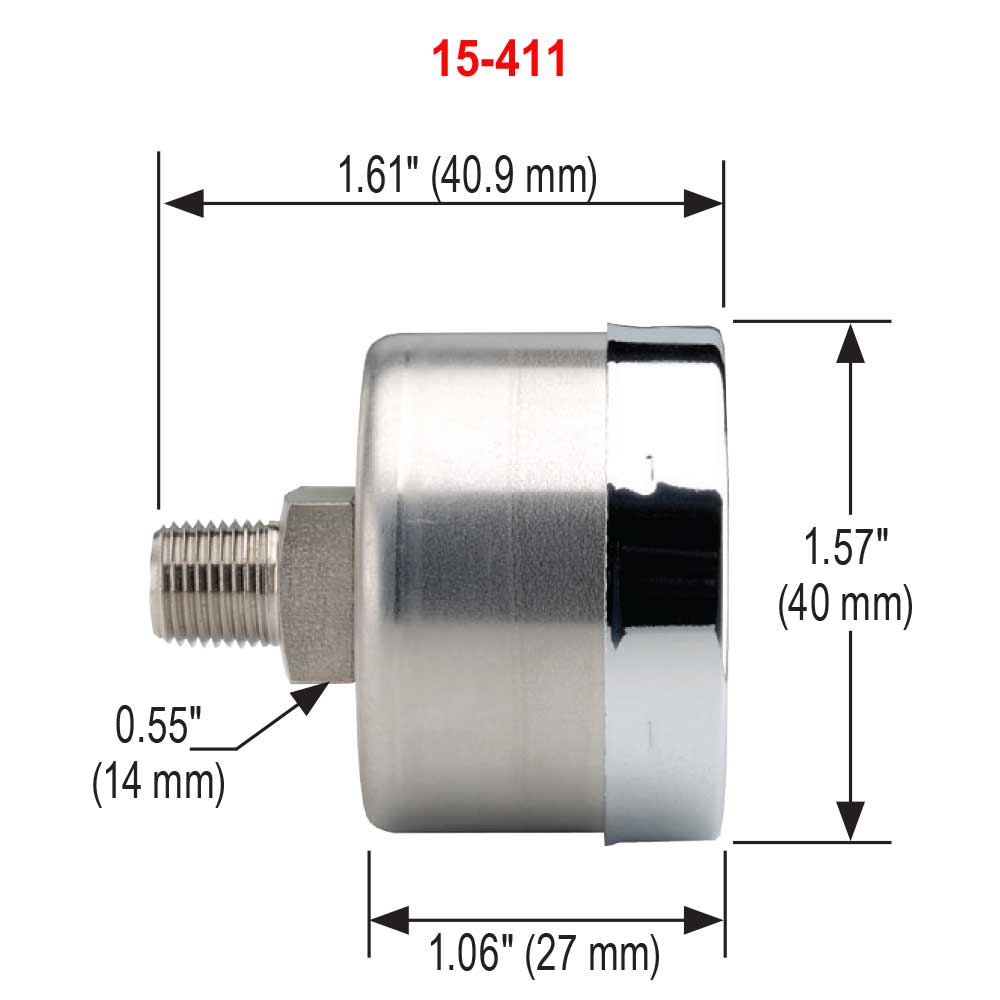

| Dimensions | : | 1.57 in W x 1.61 in D |
| Pressure Low | : | 0 PSI |
| Pressure High | : | 60 PSI |
| Connection Mount | : | Back |
| Connection Material | : | Stainless Steel |
| Gauge Size | : | 1.5 in |
| Measuring System | : | psi |
| Movement | : | Stainless Steel with Highly Polished Bearing Surfaces |
| Pressure Range | : | 0 - 60 psi |
| Dial / Display Description | : | Aluminum, White Background with Black Scale. Single Scale psi. Ultraviolet (UV) Resistant. |
| Ambient Temperature Low | : | -40 deg C |
| Ambient Temperature Low | : | -40 deg F |
| Dial Size | : | 1-1/2 in |
| Ambient Temperature High | : | 140 deg F |
| Ambient Temperature High | : | 60 deg C |
| Temperature Rating | : | -40 to 212 deg F Media, -40 to 140 deg F Ambient |
| Display Type | : | Analog |
| Media Temperature Low | : | -40 deg C |
| Media Temperature Low | : | -40 deg F |
| Media Temperature High | : | 100 deg C |
| Media Temperature High | : | 212 deg F |
| Scale | : | psi |
- Corrosion-resistant fillable dry or liquid filled gauge
- Vacuum and compound ranges through 0 - 20000 psi
- 316 stainless steel wetted parts
- Case with safety relief plug
- Polished 304 stainless steel cover ring
- Aluminum dial, white background with black scale, single scale psi, UV-resistant
- Movement - stainless steel with highly polished bearing surfaces
- Measuring element - 316 stainless steel C-type bourdon tube
- Black pointer
Applications: Ideal for applications including chemical processing, oil field and off-shore, paper mills, agriculture plants, marine and water and wastewater
