NOSHOK® Pressure Gauge, 2.5" Black Steel Case, Copper Alloy Internals, 3 psi, 1/4 NPT Back Conn
California residents see Prop 65 WARNINGS
| Material | : | Black Painted Steel |
| Product Type | : | Pressure Gauge |
| Connection Size | : | 1/4 in NPT |
| Mounting Type | : | Back |
| Case Material | : | Steel |
| Series | : | 200 |
| Connection Type | : | National Pipe Thread (NPT) |
| Lens Material | : | Acrylic |
| Accuracy | : | +/-1.6% Full Scale |
| Pointer Material | : | Aluminum |
| Finish | : | Black |

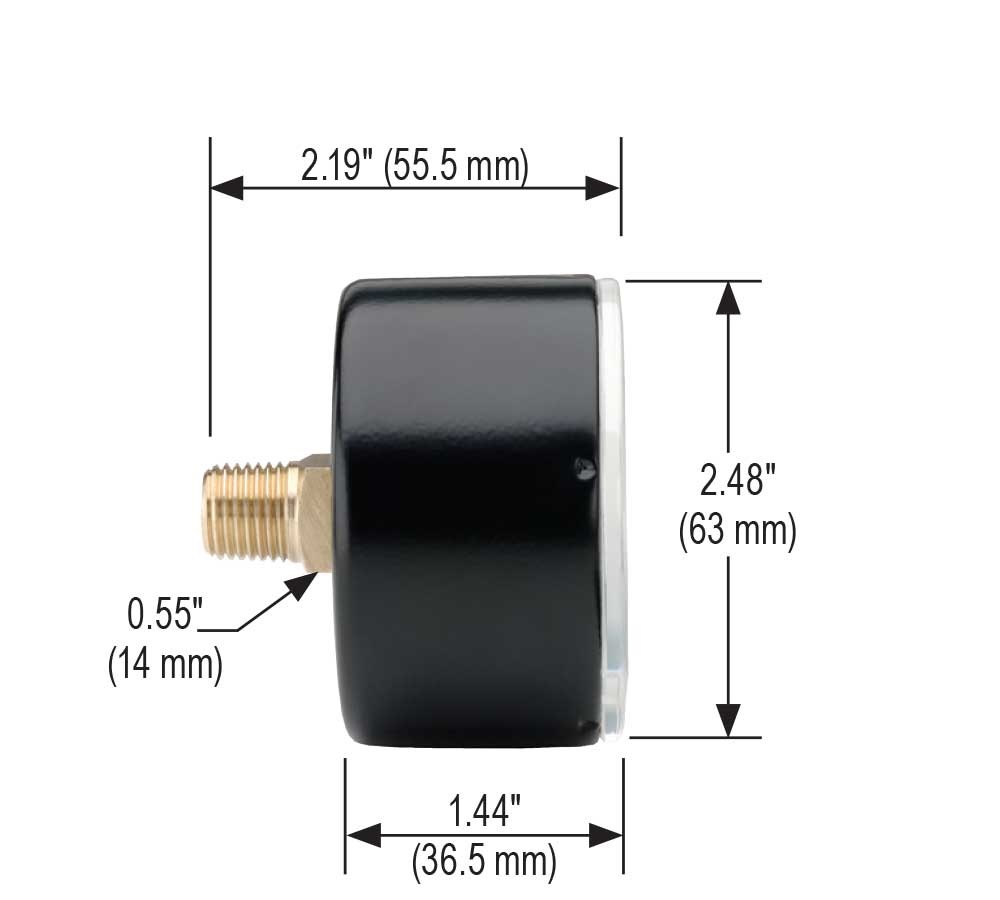

| Dimensions | : | 2.48 in W x 2.19 in D |
| Pressure Low | : | 0 PSI |
| Pressure High | : | 3 PSI |
| Connection Mount | : | Back |
| Connection Material | : | Brass |
| Gauge Size | : | 2.5 in |
| Measuring System | : | psi |
| Movement | : | Brass and Nickel-Silver with Highly Polished Bearing Surfaces |
| Pressure Range | : | 0 - 3 psi |
| Dial / Display Description | : | Aluminum, White Background with Black Scale. Ultraviolet (UV) Resistant. |
| Ambient Temperature Low | : | -20 deg C |
| Ambient Temperature Low | : | -4 deg F |
| Dial Size | : | 2-1/2 in |
| Ambient Temperature High | : | 140 deg F |
| Ambient Temperature High | : | 60 deg C |
| Temperature Rating | : | -4 to 140 deg F Ambient, -4 to 176 deg F Media |
| Display Type | : | Analog |
| Media Temperature Low | : | -20 deg C |
| Media Temperature Low | : | -4 deg F |
| Media Temperature High | : | 176 deg F |
| Media Temperature High | : | 80 deg C |
| Scale | : | psi |
- Sensitive capsule-type, non-fillable dry gauge
- Vacuum ranges through 0 - 10 psi
- Copper alloy and brass wetted parts
- Measuring element - copper alloy diaphragm capsule
- Brass connection
- Aluminum dial, white background with black scale, UV-resistant
- Movement - brass and nickel silver with highly polished bearing surfaces
- Black painted case, black pointer
Applications: Ideal for applications including filter monitoring, gas distribution, HVAC, leak detection, level indication and medical
