NOSHOK® 40-400-160-psi/kPa NOS 40-400-160-PSI/KPA | Tipco Technologies
NOSHOK® 40-400-160-psi/kPa
Send Print
  1. pin-int

NOSHOK® 40-400-160-psi/kPa

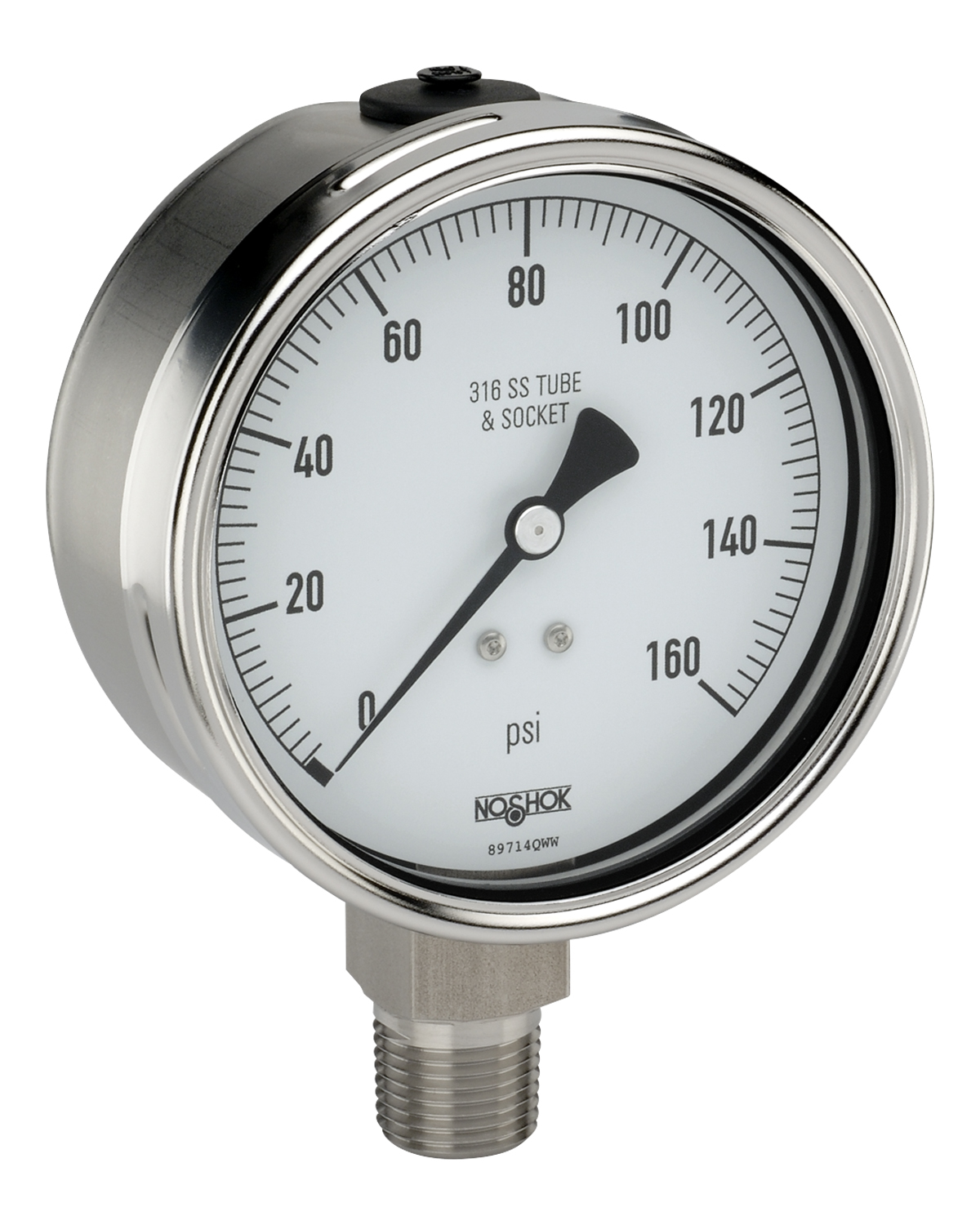

NOSHOK® Pressure Gauge, 4" 304SS Case, 316SS Internals, 160 psi/kPa, 1/2 NPT Male Bottom Conn

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 40-400-160-PSI/KPA
  • MPN: 40-400-160-psi/kPa
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Pressure Gauge, 4" 304SS Case, 316SS Internals, 160 psi/kPa, 1/2 NPT Male Bottom Conn

California residents see Prop 65 WARNINGS

Material      :      304 Stainless Steel with Safety Relief Plug, Optional 316 Stainless Steel
Connection Size      :      1/2 in
Series      :      400 Series Dry Pressure Gauges
Connection Type      :      National Pipe Thread (NPT)
Pressure Low      :      0 PSI
Pressure High      :      160 PSI
Connection Mount      :      Bottom
Connection Material      :      316 Stainless Steel
Gauge Size      :      4 in
Movement      :      All Stainless Steel with Internal Zero Stop and Highly Polished Bearing Surfaces
Dial / Display Description      :      Aluminum, White Background with Black Scale. Ultraviolet (UV) Resistant.
Ambient Temperature Low      :      -40 deg C
Ambient Temperature Low      :      -40 deg F
Ambient Temperature High      :      140 deg F
Ambient Temperature High      :      60 deg C
Media Temperature Low      :      -40 deg C
Media Temperature Low      :      -40 deg F
Media Temperature High      :      200 deg C
Media Temperature High      :      392 deg F
Scale      :      psi/kPa
