NOSHOK® 25-510-200-psi/bar-SSFF

NOSHOK® Pressure Gauge, 2.5" 304SS Case, 316SS Internals, 200 psi/bar, 1/4 NPT Male Back Conn, Glycerin Filled, 304SS Front Flange

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 25-510-200-PSI/BAR-SSFF
  • MPN: 25-510-200-psi/bar-SSFF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Pressure Gauge, 2.5" 304SS Case, 316SS Internals, 200 psi/bar, 1/4 NPT Male Back Conn, Glycerin Filled, 304SS Front Flange

California residents see Prop 65 WARNINGS

Material      :      Polished 304 Stainless Steel with Safety Relief Plug
Product Type      :      Pressure Gauge
Connection Size      :      1/4 in NPT
Mounting Type      :      Back
Case Material      :      304 Stainless Steel
Series      :      400/500
Connection Type      :      National Pipe Thread (NPT)
Lens Material      :      Trogamide
Fill Liquid      :      Glycerin
Pointer Material      :      Aluminum
Accuracy      :      +/-1.6% Full Scale
Finish      :      Polished
Lens/Display Material      :      Trogamide
Case Type      :      Stainless Steel (SS) Case, Liquid Filled, Back Connection

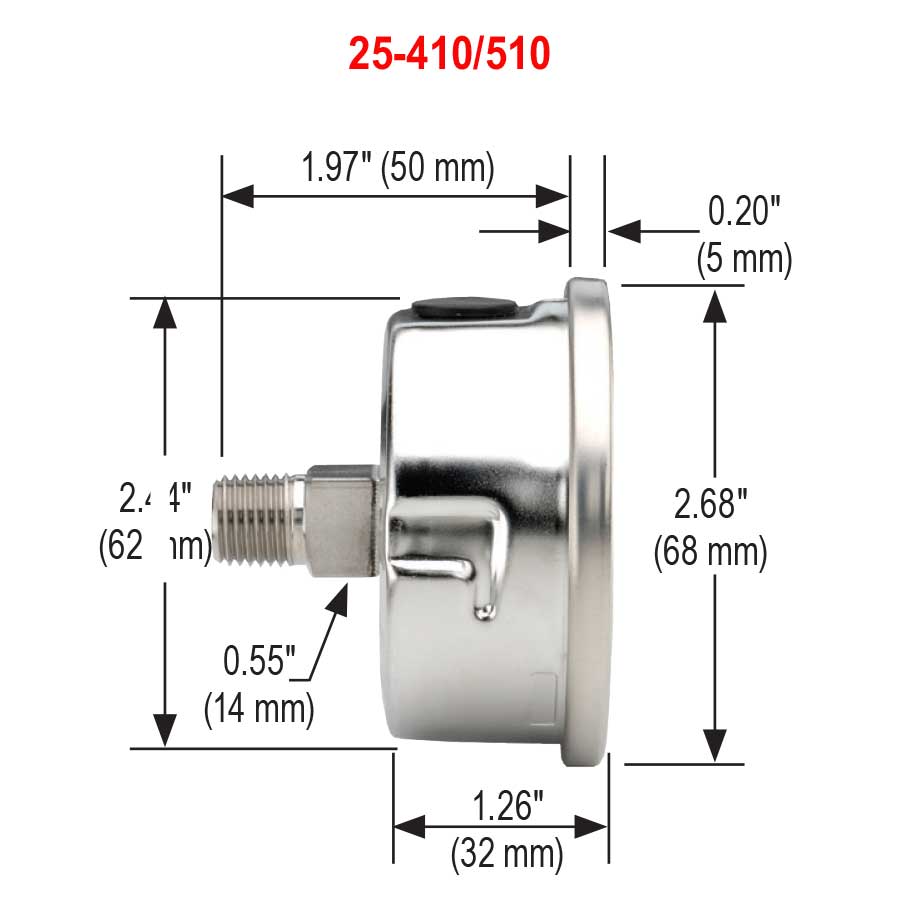

Dimensions      :      2.68 in W x 2.17 in D
Includes      :      Stainless Steel Front Flange
Scale Option      :      psi/bar
Pressure Low      :      0 PSI
Pressure High      :      200 PSI
Connection Mount      :      Back
Connection Material      :      Stainless Steel
Measuring System      :      psi, bar
Gauge Size      :      2.5 in
Pressure Range      :      0 - 200 psi
Movement      :      Stainless Steel with Highly Polished Bearing Surfaces
Dial / Display Description      :      Aluminum, White Background with Black Scale. Ultraviolet (UV) Resistant.
Dial Size      :      2-1/2 in
Ambient Temperature Low      :      -20 deg C
Ambient Temperature Low      :      -4 deg F
Ambient Temperature High      :      140 deg F
Ambient Temperature High      :      60 deg C
Temperature Rating      :      -4 to 212 deg F Media, -4 to 140 deg F Ambient
Display Type      :      Analog
Media Temperature Low      :      -20 deg C
Media Temperature Low      :      -40 deg F
Media Temperature High      :      100 deg C
Media Temperature High      :      212 deg F
Scale      :      psi/bar
  • Corrosion-resistant fillable dry or liquid filled gauge
  • Vacuum and compound ranges through 0 - 20000 psi
  • 316 stainless steel wetted parts
  • Case with safety relief plug
  • Polished 304 stainless steel cover ring
  • Aluminum dial, white background with black scale, UV-resistant
  • Movement - stainless steel with highly polished bearing surfaces
  • Fill liquid glycerin
  • Measuring element - 316 stainless steel C-type bourdon tube
  • Black pointer, polished case

Applications: Ideal for applications including chemical processing, oil field and off-shore, paper mills, agriculture plants, marine and water and wastewater
