NOSHOK® 40-901-5000-psi/kg/cm2-1/2
Send Print
  1. pin-int

NOSHOK® 40-901-5000-psi/kg/cm2-1/2

NOSHOK® Pressure Gauge, 4" 304SS Case, Copper Alloy Internals, 5000 psi/kg/cm2, 1/2 NPT Male Bottom Conn, Glycerin Filled

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 40-901-5000-PSI/KG/CM2-1/2
  • MPN: 40-901-5000-psi/kg/cm2-1/2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® Pressure Gauge, 4" 304SS Case, Copper Alloy Internals, 5000 psi/kg/cm2, 1/2 NPT Male Bottom Conn, Glycerin Filled

California residents see Prop 65 WARNINGS

Material      :      304 Stainless Steel
Connection Size      :      1/2 in
Series      :      900 Series Liquid Filled Pressure Gauges
Connection Type      :      National Pipe Thread (NPT)
Fill Liquid      :      Glycerin
Accuracy      :      1 Percent
Lens/Display Material      :      Polycarbonate
Case Type      :      Stainless Steel (SS) Case, Liquid Filled, Bottom Connection
Scale Option      :      psi/kg/cm²
Pressure Low      :      0 PSI
Pressure High      :      5,000 PSI
Connection Mount      :      Bottom
Connection Material      :      Brass

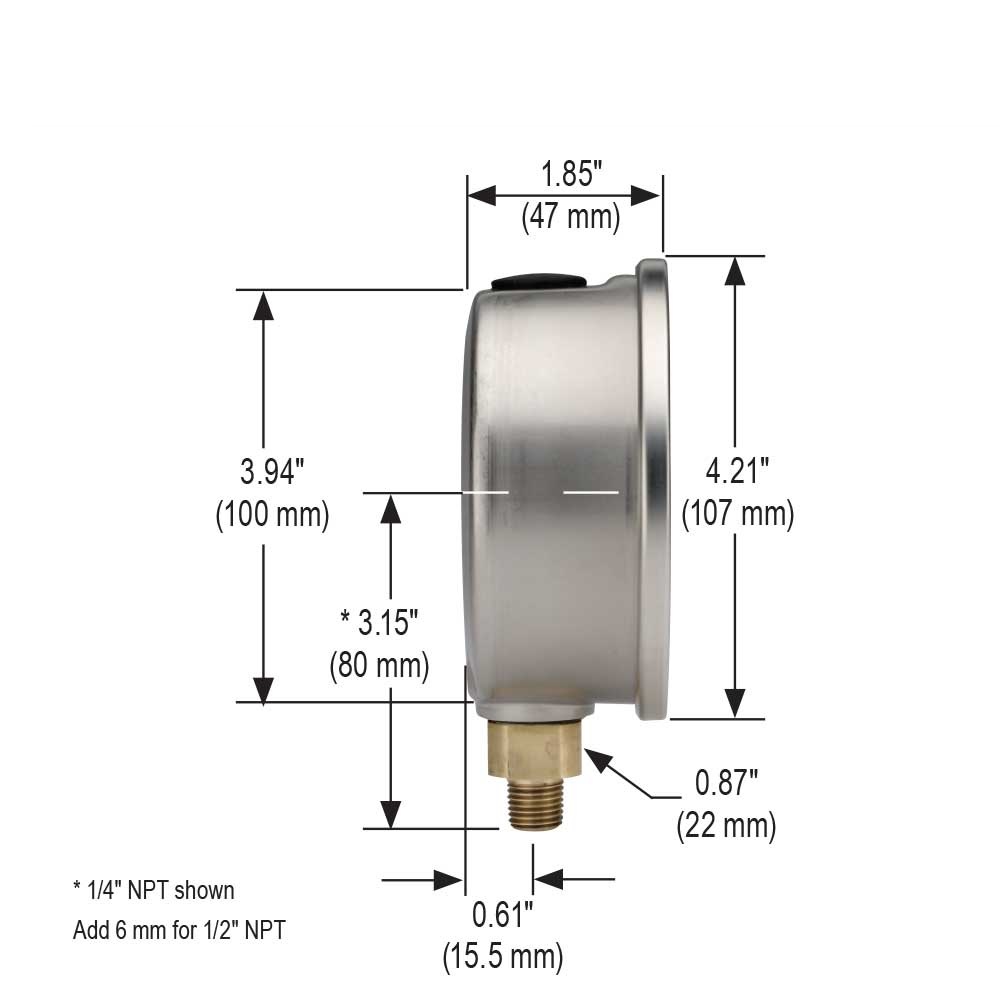

Gauge Size      :      4 in
Dial / Display Description      :      Aluminum, White Background with Black Primary Scale & Red Secondary Scale. Ultraviolet (UV) Resistant.
Ambient Temperature Low      :      -20 deg C
Ambient Temperature Low      :      -4 deg F
Ambient Temperature High      :      140 deg F
Ambient Temperature High      :      60 deg C
Media Temperature Low      :      -20 deg C
Media Temperature Low      :      -4 deg F
Media Temperature High      :      140 deg F
Media Temperature High      :      60 deg C
Cover Ring Material      :      Polished 304 Stainless Steel
Bezel Material      :      304 Stainless Steel
Scale      :      psi/kg/cm2
