NOSHOK® 204-93-6/58-1-43-28-TC
Send Print
  1. pin-int

NOSHOK® 204-93-6/58-1-43-28-TC

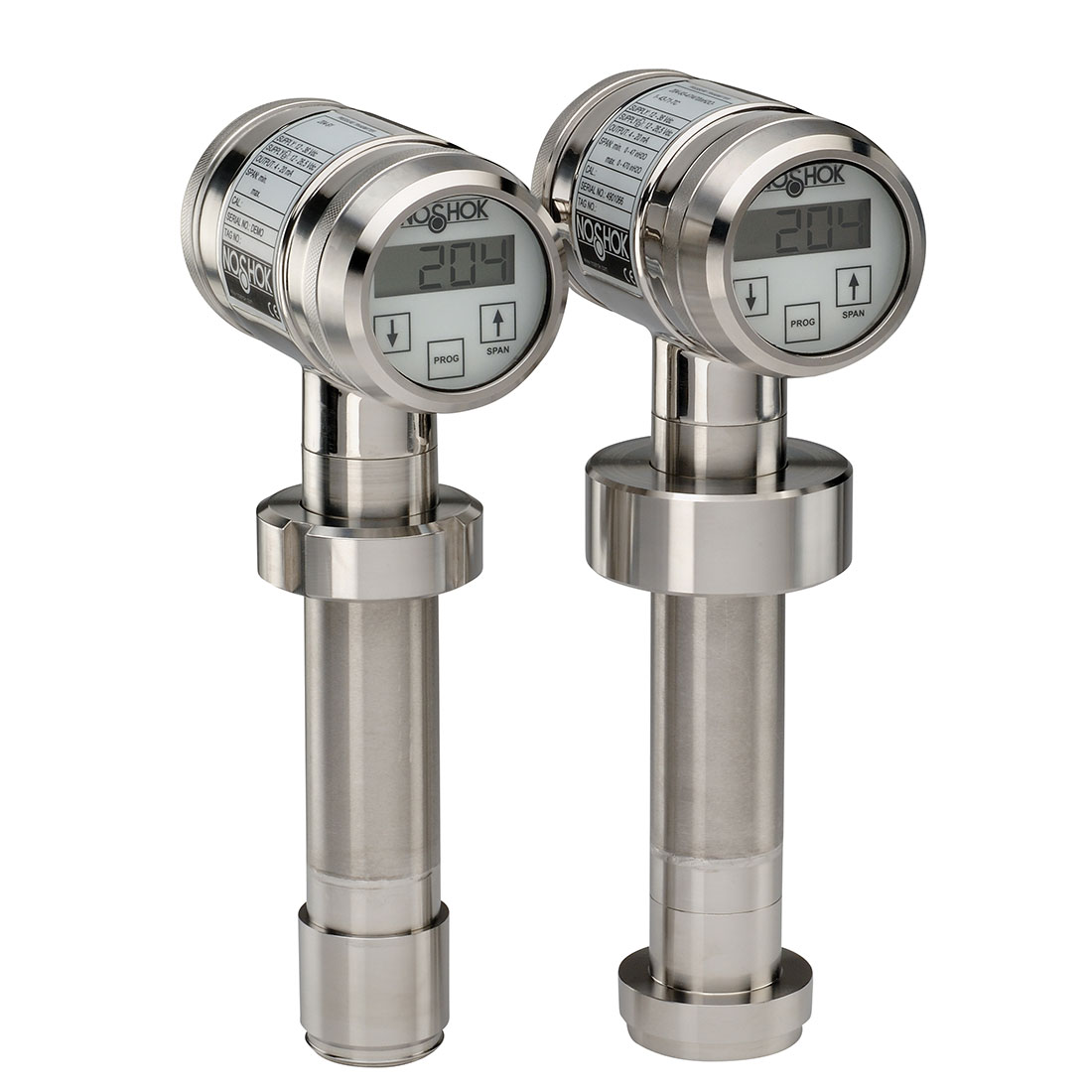

NOSHOK® 20 Series Sanitary Transmitter, Anderson Negele Type SL Long - 6", Range Adjustable from 0 – 6 psig to 0 – 58 psig, 0.1% of adjusted span, 4-20 mA/2-wire + HART Protocol, 1/2 NPT Female, Transparent Cover

  • Manufacturers: NOSHOK
  • Brand Name: NOSHOK®
  • Tipco Part No: NOS 204-93-6/58-1-43-28-TC
  • MPN: 204-93-6/58-1-43-28-TC
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

NOSHOK® 20 Series Sanitary Transmitter, Anderson Negele Type SL Long - 6", Range Adjustable from 0 – 6 psig to 0 – 58 psig, 0.1% of adjusted span, 4-20 mA/2-wire + HART Protocol, 1/2 NPT Female, Transparent Cover

California residents see Prop 65 WARNINGS

Connection Size      :      1/2 in
Series      :      20 Series Pressure Transmitters
Connection Type      :      National Pipe Thread (NPT)
Connection Material      :      316 Stainless Steel
Operating Temperature Low      :      -20 deg C
Operating Temperature Low      :      -4 deg F
Operating Temperature High      :      100 deg C
Operating Temperature High      :      212 deg F
Housing Material      :      304 Stainless Steel
Output Signal      :      4 mA to 20 mA, 2-Wire and HART® Signal
Electrical Connection      :      1/2 in. National Pipe Thread (NPT) Female
Stability      :      < 0.1%/year
Adjustment      :      By 3 push buttons on display or optional Hart® signal
Cover Ring Material      :      Polished Brass
Response Time      :      <150 ms
